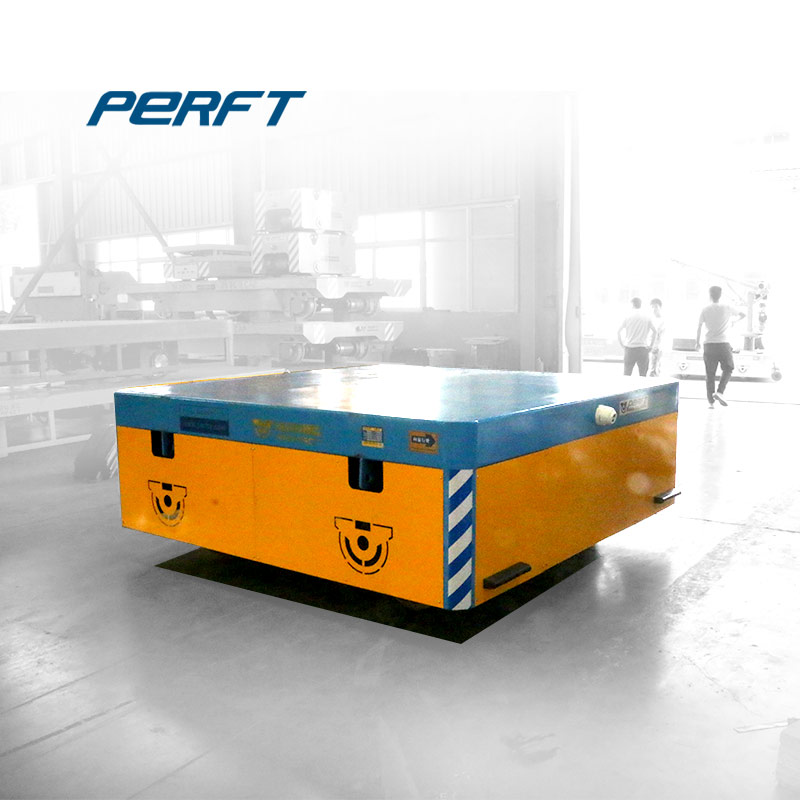

AGV Intelligent Electric Motorised Trackless Flatbed Trolley
Product description:

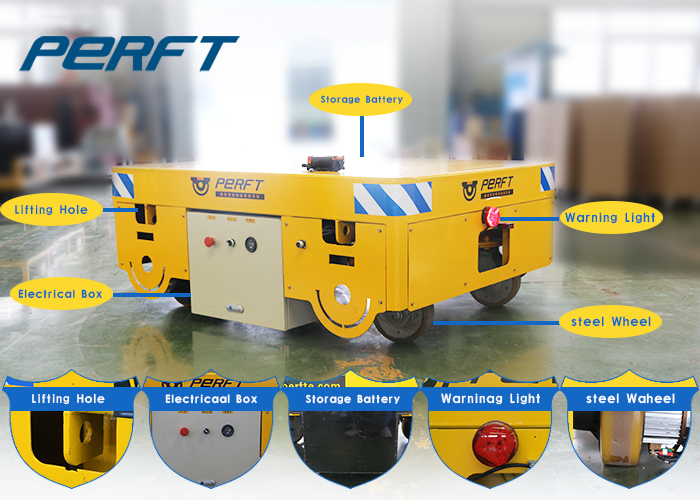

The AGV Intelligent Electric Motorised Trackless Flatbed Trolley is a kind of transfer vehicle with lithium battery as the power source and motor reducer as the drive system.
The solid rubberized wheel of AGV Intelligent Electric Motorised Trackless Flatbed Trolley runs directly on the ground. Its operation is not restricted. The imported wheel protects the ground from damage. 360° In-situ turn to adapt to small space operation, 360-degree multi-directional protection, automatic stop and other functions, to solve the safety problems in the operation process. The touch screen, joystick operation and other designs make the operation more user-friendly. The fully automated, unmanned function makes it smarter and has become a product of the Industrial 4.0 era. Adapted to various occasions such as climbing, explosion-proof, dust, etc., the birth of 150T large load weight has made it an important position in the workshop handling equipment, and has become the name of “quality”.
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical |
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture |
| Running Speed (m/min) | 0-15 | 0-12 |
| Brake Principle | Electric magnetic brake |
| Operation Method | Raido Remote Control |
| Battery Maintainance | Free of maintainance |
| Charger's Installation | Installed on cart | Split-type |
| Cart Color | Customized |
| Charger's Function | Automatically cut off the power when the battery is fully charged |
| Radar Control | 3-0.3 m, Automatic stop for obstacles |
| Warning Equipment | Horn and Flash Light |
| Other Functions | Turning light, night light and power display |
Applications:
5s workshop, automotive mold, material transfer, aerospace equipment workshop, air conditioning workshop, casting mold factory Large mold, aluminum coil, steel coil, steel, steel ingot, boiler, casting module
Materials: large molds, aluminum coils, steel coils, steel, steel ingots, boilers, casting modules.
Product Tags:
|
|

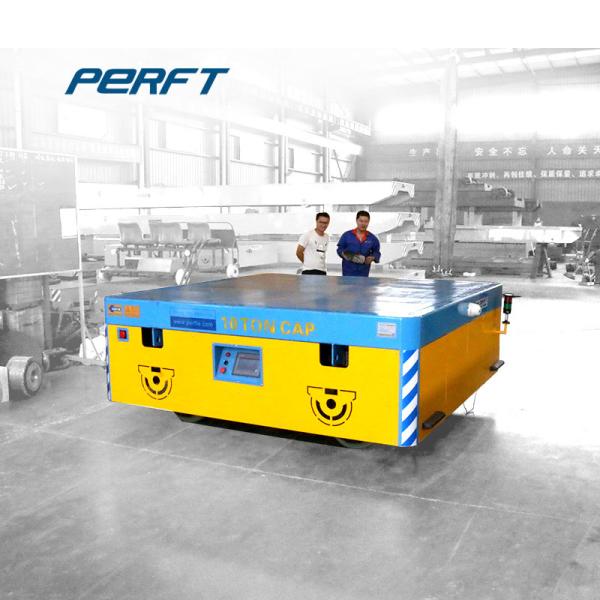

AGV Intelligent Motorized Transfer Trolley / Electric Trackless Flatbed Trolley Images
|
