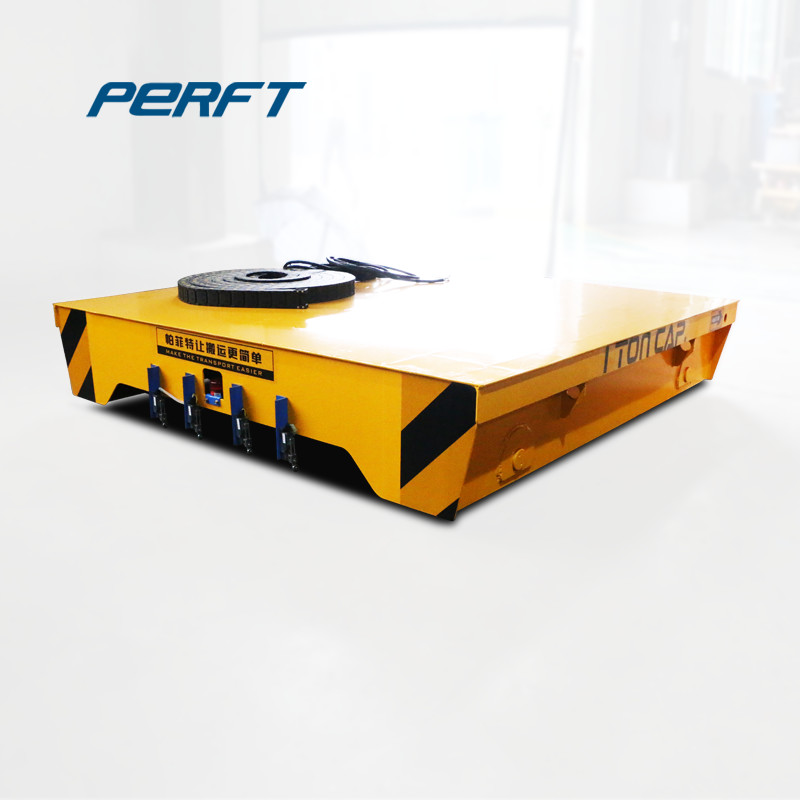

Remote Control Customization Size Electric Transfer Trolley Flatbed

Brand Name : electric flatbed cart

Model Number : electric flatbed cart

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 2000~7500 set

Supply Ability : 100 SETS month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : electric flatbed cart

Application : Transfer Materials

Color : Customized

Item : Cart

Power source : Battery

Capacity : 1-300T

Certificates : CE ISO SGS

Contact Now

             High Quality Remote control Customization size Electric Transfer cart


Introduction
Our rail carts, often called material transfer carts, rail push carts or rail material carts, are ideal for manufacturing facilities and railway networks. Designed for low speed applications not are intended for use in high speed applications. These rail transfer carts are used for moving large loads of equipment or specialized machinery on rails in a wide range of areas . Models are available for capacities up to 300 tons. All models are provided with a standards mechanical parking brake, sealed bearing, and heavy duty wheels and axles.
Our rail carts, often called material transfer carts, rail push carts or rail material carts, are ideal for manufacturing facilities and railway networks. Designed for low speed applications not are intended for use in high speed applications. These rail transfer carts are used for moving large loads of equipment or specialized machinery on rails in a wide range of areas . Models are available for capacities up to 300 tons. All models are provided with a standards mechanical parking brake, sealed bearing, and heavy duty wheels and axles.


Remote Control Customization Size Electric Transfer Trolley Flatbed



Q/A

α: Low noise It causes low noise level.
β: Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
γ: Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
δ: Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

η: To Increase Output The multidirectional battery powered trolley on wheels minimizes forklifts and cranes usage, due to the lifting deck which allows to these poly directional battery-driven trolleys to lift and move the loads where needed.
θ: No limits for the Spaces The steering battery-driven trolley is rather compact and with all the different types of steering: 90 degree, carousel, diagonal, compass and so on. And it can operate even in very narrow spaces.

Remote Control Customization Size Electric Transfer Trolley Flatbed

Parameter Form

Model

BDGZ

-2t

BDGZ

-20t

BDGZ-50t BDGZ-100t BDGZ-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Transformer Power(KVA) 3 6.8 10 30 30
Transformer Quanity 1 1 1 1 1
Running Distance(m) 70 70 50 50 50

Max

Wheel Load(KN)

14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8

Recommended

Rail Model

P15 P24 P43 QU100 QU100



Package&Customers



Remote Control Customization Size Electric Transfer Trolley Flatbed
