Battery Powered Rail Transfer Cart Flat Ttransport Carriage With Steel Frame On Railway

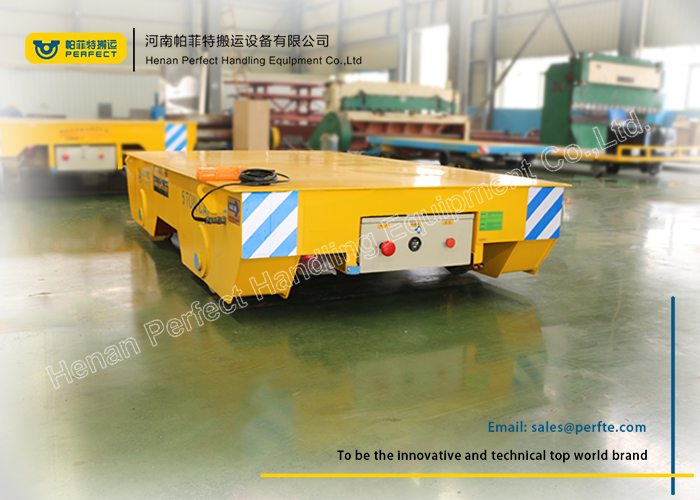

Introduction of Rail Transfer Cart
This 5Ton Transfer Cart belongs to light weight transport car, it is widely used to transfer materials bay to bay with flatform pallet. Our transfer trolley moves on rails. It's special designed and powered by storaged battery. Why does you need a transfer cart? When your factory need to move heavy material from one place to another, you need our products to improve working effcienctly. Our products are easy to operate and safe for workers. The battery is free of maintenance, and the service life is over 3 years. You can control it by pendant or remote control. We can also equipment some other equipment as per you needs.
Application Fields of Rail Transfer Cart
Our products are mainly used to transfer materials between workshop.They are widely applied on assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor) etc.
Process of Rail Transfer Cart
1. CNC Cutting
2. Preliminary Assembling
3. Welding
4. Post weld treatment
5. Spray Primer
6. Assembling
7. Paint finish
8. Debugging
Parameters of Rail Transfer Cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t |
| Rated Load(t) | 2 | 20 | 50 | 100 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 |
| Height(H) | 450 | 550 | 650 | 900 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 |
| Battery Capacity | 180 | 180 | 330 | 440 |
| Battery Voltage | 24 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 |

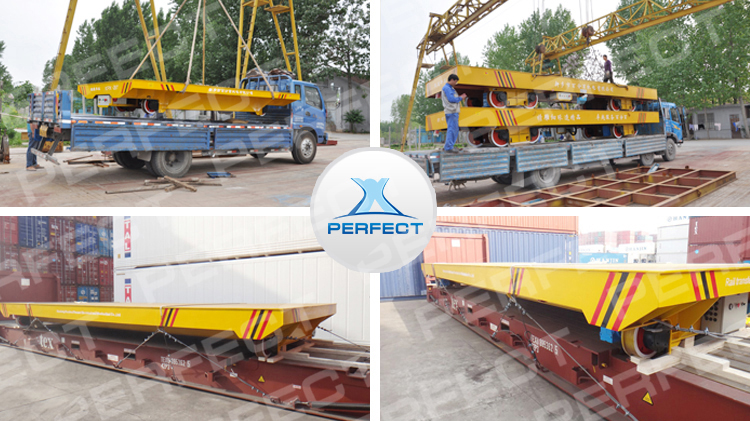

Packing and Shipment
We will try our best to pack the product well to avoid abrasion. The body of the cart is packed with tarp, the small parts will be packed with wooden cases. And we will choose the most cost-saving delivery method for our client.
