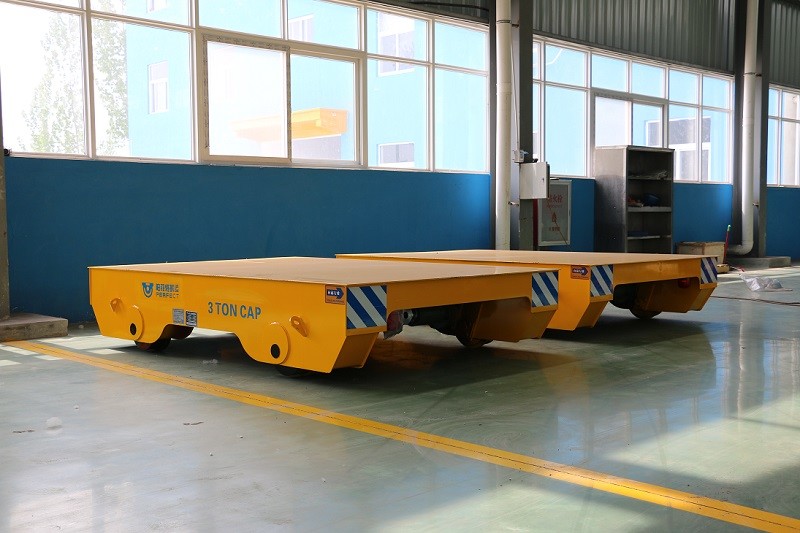

High quality Heavy duty Factory Material handing Electric Rail Transfer Cart
Descraptions
The towed type railroad heavy transporter is a kind of important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. It has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more transporters could be towed by one tractor. The towed type railroad heavy transporter is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.
Application of Towed Type Railroad Heavy Transporter
Our towed type railroad heavy transporter is suitable for various industries such as:
For Steel Mill Transportation: Transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc ;
Paper Roll Plant: Transfer finished paper coil to the warehouse etc.
Aluminum Coil Plant: The railroad heavy transporter can be mounted V frame or roller on the deck to transfer steel pipes and aluminum coils;
Painting Shops: Transfer workpiece into the painting room Sand blasting room;
Assembly Lines: Due to advantage of without cable, the railroad heavy transporter mainly applied in assembly line;
Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc;
Custom-built of Towed Type Railroad Heavy Transporter
The load capacity, table size, color of the towed type railroad heavy transporters all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
FAQ:
-
1. Q: What is the size and load of this Rail Coil Transfer Car?
A:The size and load of our this rail coil transfer car is customized design according to your requirement.
-
2. Q: How do you transport the Rail Coil Transfer Car and what is the package ?
A: For the big part, we will pack the rail coil transfer car with tarpaulin and wood pallet on the bottom of the rail coil transfer car to prevent it from moving. For the small part, we will pack it in wood case.
80t Wireless Control Motorized Electric Trackless Transfer Cart
-
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
80t Wireless Control Motorized Electric Trackless Transfer Cart
-
4. Q: What is your MOQ?
A: At present, our MOQ is 1 set.
-
5. Q:Can choose the power supply?
A:Yes,such as the cable drum, rail powered, busbar powered ,trailing cable powered, etc.
Technical Parameters
| Model | BP-5T | BP-10T | BP-15T | BP20T | BP-30T | BP-45T | BP-60T |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height (mm) | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| On cement floor | Tire Specification | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire |
| On rail | Rail Inner Gauge(mm) | 1435mm |
| Wheel material | LD steel wheel, Angel box wheel |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
