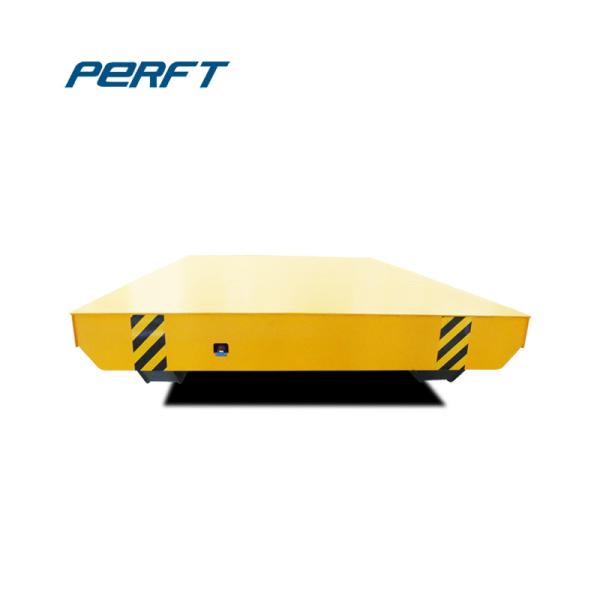

Battery Powered Electric Wireless Remote Heavy Load Transfer Cart

Brand Name : Rail Transfer Cart

Model Number : Rail Transfer Cart

Certification : CE ISO SGS

Place of Origin : Henan china

MOQ : 1

Price : USD:3000-6000/set

Supply Ability : 30sets/week

Delivery Time : 20 work days after received balance payment

Packaging Details : Trap and Wooden Case

Product Name : Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane

Capacity : 1-300ton

Type : Rail Transfer Cart

Power source : Battery powered

Motor Power : 1-15Kw

Wheel Diameter(mm) : 270-600

Running time when full load : 6 hours

Running Speed : 0-25m/min (Optional)

Ground clearance(mm) : 50-75

Contact Now

Battery powered Factory use Heavy load Electric cart with Wireless Remote



Descraptions

The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane is powered by battery and the battery is installed inside the Rail Transfer Cart.Because there is no wires,so the running distance is not limited.The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane can be used to L-form track or S-form track or curved track,and inflammable, explosive and ferry environment.The electric flat transfer cart can be added V shape and U shape device for coil and aluminum material transportation.The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane running on the rail,so the Ground Clearance(mm) required 50.

Battery Powered Electric Wireless Remote Heavy Load Transfer Cart

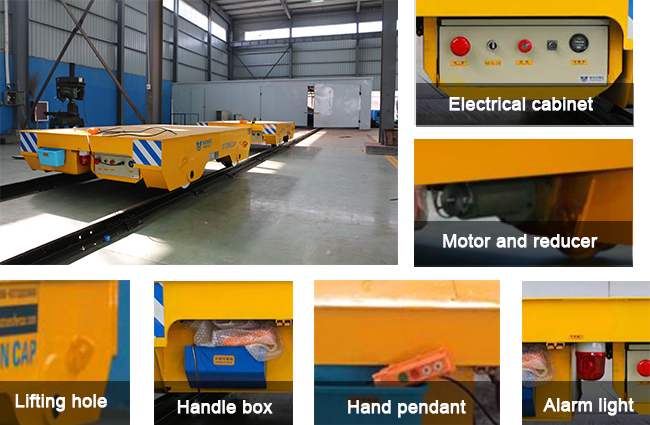

Componence

Battery Powered Electric Wireless Remote Heavy Load Transfer Cart





Product parameters

Model BXC2t BXC20t BXC50t BXC100t BXC150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
  Width(W) 1500 2200 2500 2800 3000
  Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Battery Voltage(v) 24 48 48 72 72
Battery Capacity(Ah) 180 180 330 440 600





 Customer visitor

Battery Powered Electric Wireless Remote Heavy Load Transfer CartBattery Powered Electric Wireless Remote Heavy Load Transfer Cart



How it works



Battery Powered Electric Wireless Remote Heavy Load Transfer Cart

Battery Powered Electric Wireless Remote Heavy Load Transfer Cart
