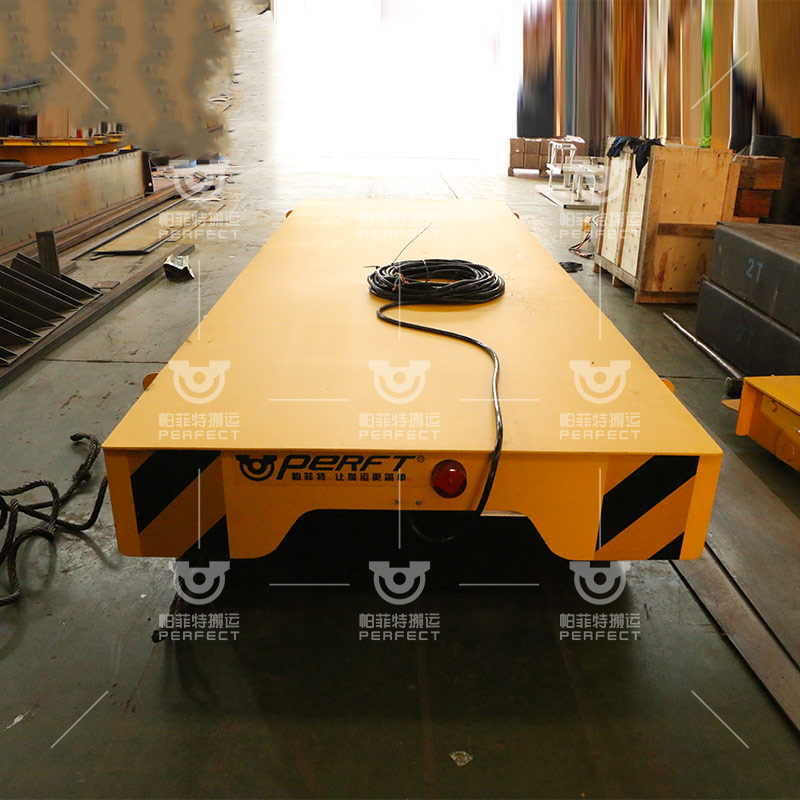

customized 5ton tow cable power rail traveling flat electric transfer cart

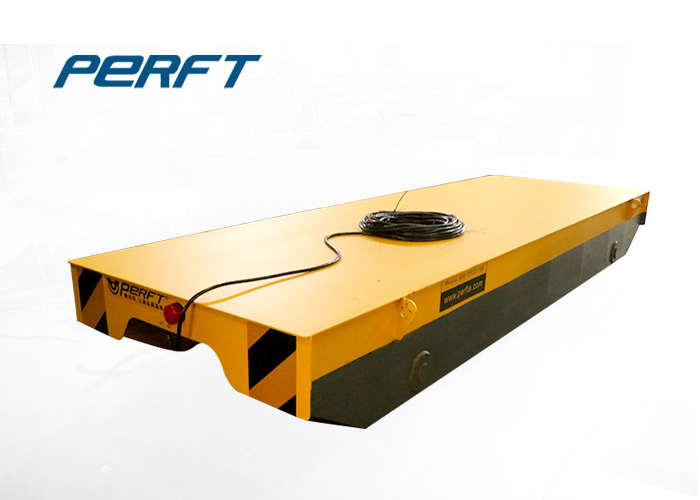

Description
BTL series’s rail transfer cart is powered by mobile cable. It conducts AC 380V directly into the electrical control system of the transfer cart to let it start, stops, goes forward and backward and so on. The cart is powered by dragging cable winch is laid on the ground. The cable line is placed between the two rails. The operation system is low voltage 36V power.
Advantages
safe and flexible
ow noise level
save labor cost
compact structure
suitable for high using frequency circumstances
environmental friendly
easy operation
easy maintenance
no strict requirements for rail installation
heavy carrying capacity
low table height
Application
Technical parameters:
| Technical Parameters for KPT Series Rail Transfer Carts Powered by Dragged Cable | | Model | KPJ-2t | KPJ-5t | KPJ-10t | KPJ-16t | KPJ-20t | KPJ-25t | KPJ-30t | KPJ-40t | KPJ-50t | KPJ-63t | KPJ-80t | KPJ-100t | KPJ-150t | | Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | | Table Size(mm) | Length( L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 | | Width( W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | | Height( H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | 800 | 850 | 1200 | | Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | | Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | | Wheel Diameter(mm) | Ф270 | Ф300 | Ф300 | Ф350 | Ф350 | Ф400 | Ф400 | Ф500 | Ф500 | Ф600 | Ф600 | Ф600 | Ф600 | | Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | | Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | | Running Speed(m/min) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | | Motor Power(Kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | | Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | | Reference Weight(t) | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 6 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 | | Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100
| |
Application
Successful case
A company located in the province Hubei, orders two BTL-2T trailing cable powered transfer carts in November 2015.
1, load: 2T
2. Table size: 1500*1500*350mm
3. Center distance of rail: 1250mm
4. Power supply: towing cable power supply
5, operation mode: car handle + wireless remote control
6. Operation length: 10M
7, running speed: 20m/min
This purchase of electric flat cars is mainly used for processing and transshipment of small and medium-sized workshop.
At the time of delivery, customers required to add 25 meters of cable. So far, the carts has not reflected any quality problems and customers expects to re order 3 heavy duty electric rail flat cars in the near future.

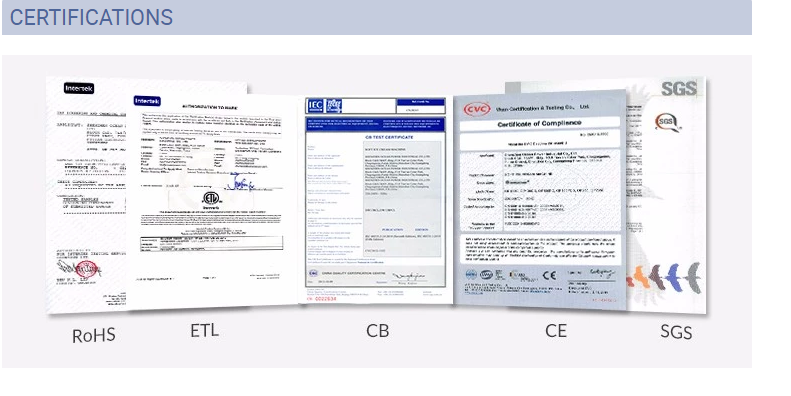

Certificate show
