30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery

Name: 30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery
Brand: Perfte
Price: 5500 USD

Buy cheap 30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery product

Brand Name : Perfte

Model Number : BDG

Certification : CE, ISO, SGS

Place of Origin : Henan, China(mainland)

MOQ : 1

Price : $5500-$8000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 60 set per month

Delivery Time : 5-7 work days

Packaging Details : wooden case

Warranty : 24 Month Long Guarantee

Capacity : 0-100

Power supply : Maintenance-free lead-acid batteries

Running routine : Cement floor

Function : Turn to 360 degree

Slop : < 6 degrees

Product name : Rail powered transfer flat cart special for traction and dragging of large machinery

Contact Now

30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery

Description

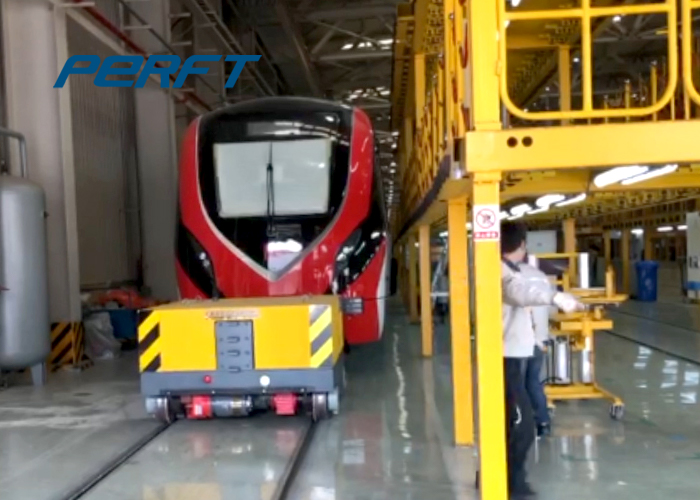

30t rail powered transfer flat cart special for traction and dragging of large machinery-transfer trucks specializing in large-scale mechanical traction and towing not only have their own characteristics in large-scale mechanical towing, but also have great achievements in material handling.
30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery

Functions of 30t Rail powered transfer flat cart:

I:Supply way of the 30t Rail powered transfer flat cart:Rail powered
II.Driving way of the 30t Rail powered transfer flat cart:Differently drive
III.Wheel material of the transfer cart:Rubber&Polyurethane material
V.Running routine of the flat rail transfer car:Straight or curve line

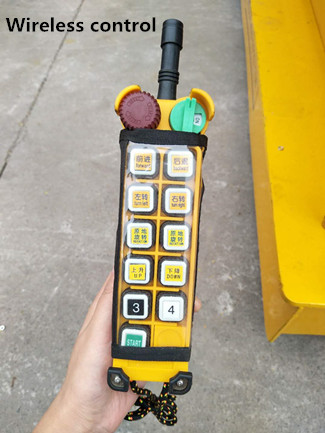

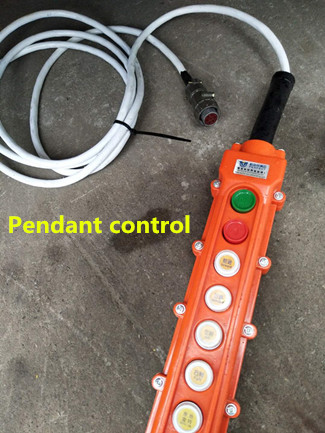

IV:Remote control:Wireless control&pendant control
30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery

Product parameters

Technical parameters of BXC-30T (Customizable)

Modle	BXC-10T	BXC-30T	BXC-50T	BXC-80T	BXC-100T	BXC-150T
Table Size (m)	3.42.10.5	4.62.20.6	5.72.50.65	6.12.60.8	6.53.80.9	103.21.2
Power	Maintenance Free Battery
Rail inner Gauge	1435mm	1435mm	1435mm	1800mm	2000mm	2000mm
Wheel Dia.	350mm	400mm	500mm	600mm	600mm	600mm
Running Speed	0-25m/min	0-25m/min	0-25m/min	0-25m/min	0-25m/min	0-25m/min
Motor Power	1.6kw	3.5kw	5kw	8kw	10kw	15kw
Battery Capacity	180Ah	250Ah	330Ah	400Ah	440Ah	600Ah
Battery Volatge	48v	48v	48v	72v	72v	72v
Max Wheel Load	42.6Kn	110.4Kn	174Kn	278.4Kn	343.8Kn	265.2Kn
Reference weight	4.2t	6.8t	8t	12.8t	14.6t	26.8t
Recommend Rail	P24	P38	P43	P50	QU100	QU100

Application

Product Tags:

rail transfer car

load transfer trolley

30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery Images
