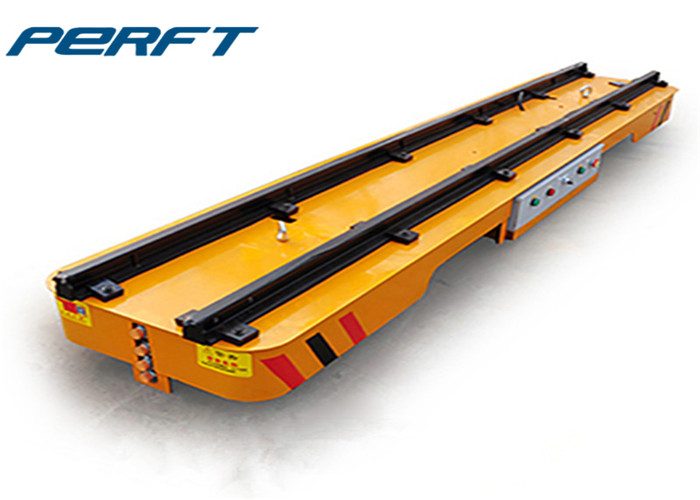

Automatic Rail Transfer Cart with Rail Guided Vehicle System for Factory Cargo Transportation
The Automatic Rail Guided Vehicle with Rail Guided Vehicle System for Factory Cargo Transportation is battery powered.The Rail Guided Vehicle equipped with an automatic guidance device such as electromagnetic or optical, which can travel along a prescribed guidance path, which has safety protection and various load-shifting functions, and which does not require a driver in industrial applications.
Advantage
1.Unmanned operation
2.Multi point automatic docking
3.High pipelining efficiency
4.High repeatability
5.Long working hours
6.Running on the rail
7.High speed,reliability and low cost
8.No human operation, fast running speed
Product parameter
| Model | 2t | 20t | 50t | 100t | 150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| | Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| | Heigth(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 |
Application
The Automatic Rail Guided Vehicle with Rail Guided Vehicle System for Factory Cargo Transportation is widely used in logistics system, which is characterized by high speed, high reliability and low cost. As a storage peripheral equipment, automatic docking with other logistics systems can be easily realized, such as exit / entry platform, various buffer stations, conveyors, elevators and robots, and carry out material transportation according to the plan.
