80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling
The BJT series 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling is widely used for heavy duty material handling for factory.The Wheel Base(mm) of the 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling is 1200-7000;the Rail Inner Gauge(mm) of the 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling is 1200-2000. The PLC system can be added if need.
Advantages and functions of 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling
1.No limitation of the rails.
2.Can be customized the capacity,table size,running speed,wheel base...
3.Convenient for the factory heavy duty material handling.
4.Can be used in warehouse or outdoor working.
5.Can added V/U shape if need.

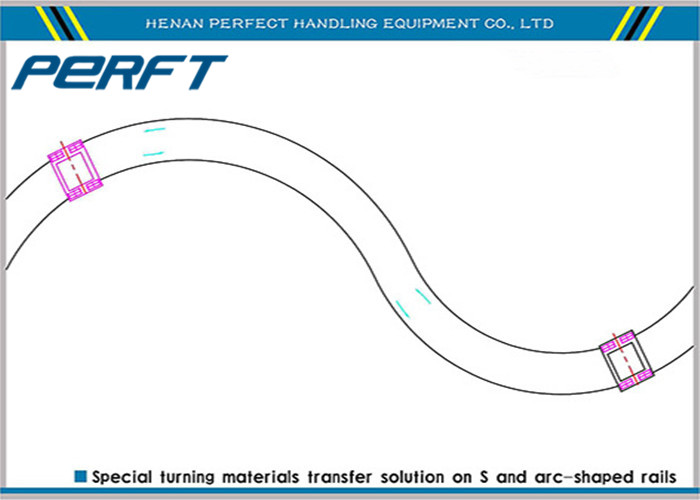

6.Can turning on the rails.

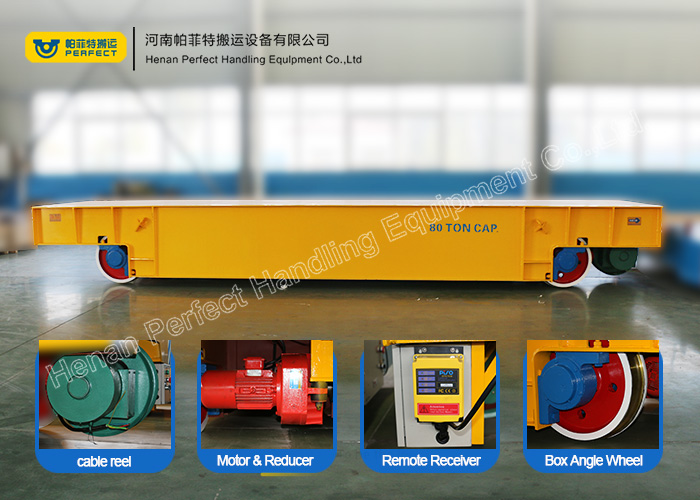

Detailed Image of 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling
The 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module.
The scheme of the 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling
Technical parameter table of 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling
| Model | 2t | 20t | 50t | 100t | 150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| | Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| | Heigth(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 |
Application of the 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling has been highly approved by our customers.
Product Tags:
|
|

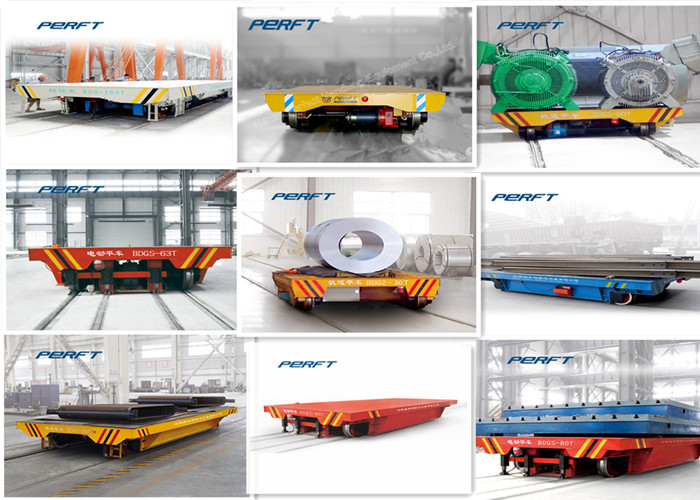

80 ton rail guided heavy duty Rail Transfer Cart for industrial material handling Images
|
