Black Flatbed Rail Transfer Cart Heavy Load Foundry Transport Car Trailer

Name: Black Flatbed Rail Transfer Cart Heavy Load Foundry Transport Car Trailer
Brand: PERFECT
Price: 1 USD

Buy cheap Black Flatbed Rail Transfer Cart Heavy Load Foundry Transport Car Trailer product

Brand Name : PERFECT

Model Number : BTL

Certification : CE, SGS, ISO

Place of Origin : Xinxiang, China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 75 Sets per month

Delivery Time : 45 Days

Packaging Details : The whole cart is package with tarp, and parts will be packed by wood cases.

Load Capacity : Customized

Operation Mode : Pandent and Remote Controller or PLC

Application : Factory, Warehouse, Port, Construction, Steel Structure

Rail Gauge : Customized

Color : Customized

Working Time : All Day

Wheel Type : Cast steel wheel

Safrty Device : Buffer, Alarm light, Emergency Stop Buttons

Special Function : Anti-Explosion, Heat-Resistant, Lifting, Dumpling

Dimension : Customized

Contact Now

Black Flatbed Rail Transfer Cart Heavy Load Foundary Transport Car Trailer

Product Introduction

Our BTL Series of cars is powered by dragging cable. The 380V alternating current is leaded into electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.

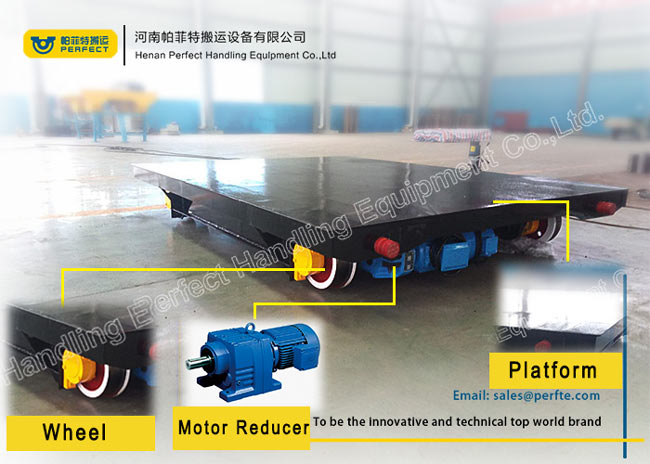

Spare Parts Of Transfer Cart

Our material handling cars are mainly made up of wheel, motor, reducer, remote control and handle, brake system. We promise all of the spare parts will be high quality and durable.

Black Flatbed Rail Transfer Cart Heavy Load Foundry Transport Car Trailer

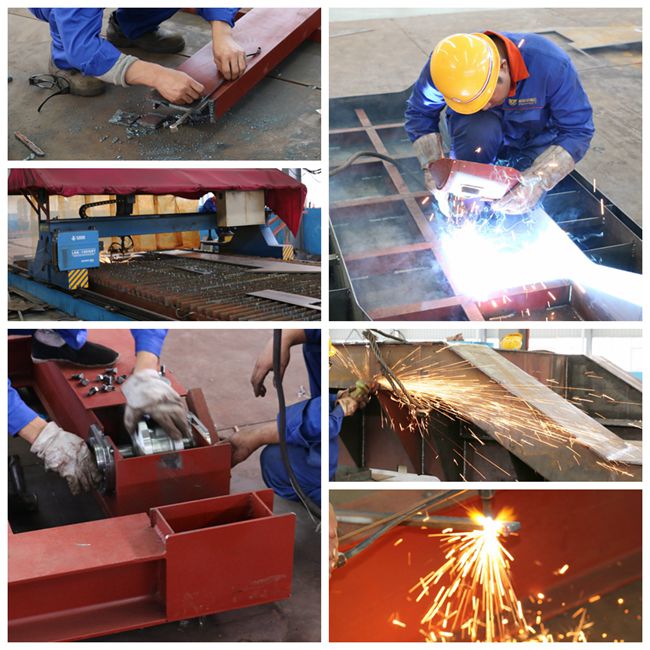

Process Technology

1. CNC Cutting
The steel plate is transported from warehouse to CNC cutting workshop for cutting.
2. Preliminary Assembling
Workers put the cut steel plate together according to the design drawing.
3. Welding
Weld the steel plate with automatic welding machine after the preliminary assembling.
4. Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
5. Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
6. Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
7. Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
8. Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load. After the inspection, the cart will be transported to storage area.

Black Flatbed Rail Transfer Cart Heavy Load Foundry Transport Car Trailer

Parameters

Model		BTL-2t	BTL -20t	BTL -50t	BTL -100t	BTL -150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

About US

Henan Perfect Handling Equipment Co., Ltd. offers both standard solutions and customized solutions specially conceived to solve specific and complex handling needs. Our products not only have sold across the country,but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal and many other countrys.
