The Portable Lifting Platform uses in factory warehouse cargo transportation with lifting equipment is ideal lift platform for aerial maintain and clean, used indoor or outdoor. With AC driven system,electric lift makes low noise and no emission when working. 90-degree steering can run in both high and low speeds, enable electric lift work in small space.The Portable Lifting Platform uses in factory warehouse cargo transportation with lifting equipment is mainly used for high place for repairs, maintenance, cleaning or installation and so on. Work place, like the station, wharf, warehouse, hall, building indoor and outdoor machinery installation, equipment maintenance, building maintenance etc.
Advantages of Portable Lifting Platform uses in factory warehouse cargo transportation with lifting equipment
1.Anti-high temperature,Anti-high explosion;
2.With lifting equipment is powered by battery;
3.With lifting holes,convenient to shipment;
4.Stable start, big starting power, long lifetime;
5.Can spin around 360 degrees;
6.Running distance is unlimited;
7.Safe and convenient operation;
8.High using frequency;
9.Roll hydraulic device;
10.Battery power supply, running route unlimited;
Main components of Portable Lifting Platform uses in factory warehouse cargo transportation with lifting equipment
Technical parameters of Portable Lifting Platform uses in factory warehouse cargo transportation with lifting equipment
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | | Rated Load(t) | 2 | 20 | 50 | 100 | 150 | | Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | | | Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | | | Heigth(H) | 450 | 550 | 650 | 900 | 1200 | | Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | | Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | | Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | | Wheel Quantity | 4 | 4 | 4 | 4 | 8 | | Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | | Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | | Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | | Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | | Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 | | Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | | Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | | Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | | Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |

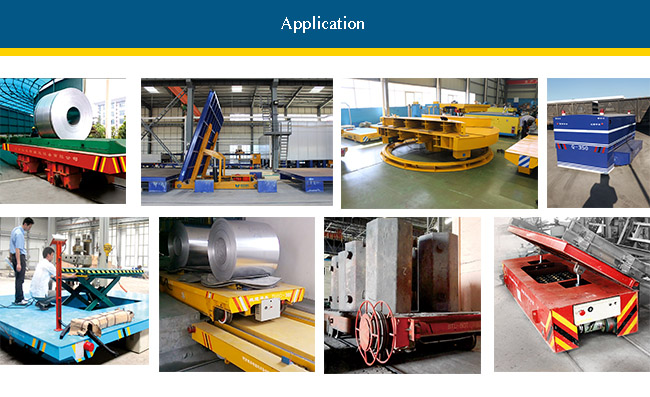

Application and usage of Portable Lifting Platform uses in factory warehouse cargo transportation with lifting equipment
The Portable Lifting Platform uses in factory warehouse cargo transportation with lifting equipment is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
