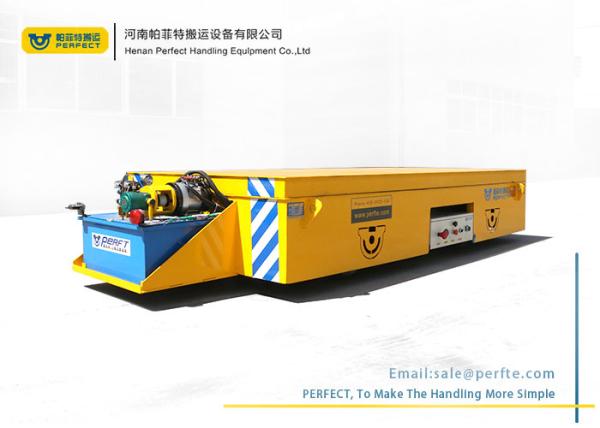

Customization Trackless Battery Powered Ladle Transfer Car

Name: Customization Trackless Battery Powered Ladle Transfer Car
Brand: coil high temperature steel ladle workshop handling tractor
Price: 3000 USD

Buy cheap Customization Trackless Battery Powered Ladle Transfer Car product

Brand Name : coil high temperature steel ladle workshop handling tractor

Model Number : coil high temperature steel ladle workshop handling tractor

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 3000~7200 set

Supply Ability : 100sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : coil high temperature steel ladle workshop handling tractor

Table Size : Customized

Color : Customized

Running speed : 0-20m/min

after-sales Service Provided : Engineers available to service machinery overseas

Contact Now

Customization Trackless Battery powered Heavy duty High temprature Ladle transfer cart

Details

Application fields of customized heavy duty coil high temperature steel ladle workshop handling tractor With the functions of steady traveling, stepless speed regulation, the high temperature resistance steel ladle transfer cart is commonly applied to ladle transfer, molten and liquid steel,aluminum ladle, furnace clinker, steel slag etc. These customized heavy duty coil high temperature steel ladle workshop handling tractor are usually used to carry molten steel before the furnace, electric stove or converter in steel mill, foundry work, metallurgy industry, and casting factory.

Customization Trackless Battery Powered Ladle Transfer Car

Technical Parameter

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Max. Wheel Load (t)	2.8	5.6	7.7	10	12
Ground Requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table Size (mm)	3000 X 2000	4500 X 2200	5000 X 2200	5500 X 2300	6000 X 2300
Height (mm)	450	600	650	700	700
Wheel Base (mm)	1500	1700	1700	1800	1800
Axles Distance (mm)	2500	3900	4300	4800	5200
Turning Radius (mm)	2501	3901	4301	4801	5201
Turning Structure	Mechanical
Motor Power (KW)	3.5	7	10	12	15
Wheel Diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel Material	ZG55+hydropurture
Running Speed (m/min)	0-15			0-12
Brake Principle	Electric magnetic brake
Operation Method	Raido Remote Control
Battery Maintainance	Free of maintainance
Charger's Installation	Installed on cart			Split-type
Cart Color	Customized
Charger's Function	Automatically cut off the power when the battery is fully charged
Radar Control	3-0.3 m, Automatic stop for obstacles
Warning Equipment	Horn and Flash Light
Other Functions	Turning light, night light and power display

Customers

Customization Trackless Battery Powered Ladle Transfer Car

Certificate

Our products have gotten 8 patents and exported to more than 50 countries and regions. Our main products include battery operated transfer trolley, hydraulic motor driven mobile trolley, cable operated transfer trolley, industrial trailers, non-powered transfer cart, electric rail car, motorized transporter, coils transport trolley, high temperature resistance steel ladle transfer cart and so on.
