25T transfer trolley motorized trackless cart for crossing workshop

Name: 25T transfer trolley motorized trackless cart for crossing workshop
Brand: trackless cart for crossing workshop
Price: 2000 USD

Buy cheap 25T transfer trolley motorized trackless cart for crossing workshop product

Brand Name : trackless cart for crossing workshop

Model Number : trackless cart for crossing workshop

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 2000~7200

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : trackless cart for crossing workshop

Powered source : battery

Capacity : 1-300T

Warranty : 12 Months

Application : Industrial Filed

Feature : Easy Operation

Contact Now

25T transfer trolley motorized trackless cart for crossing workshops

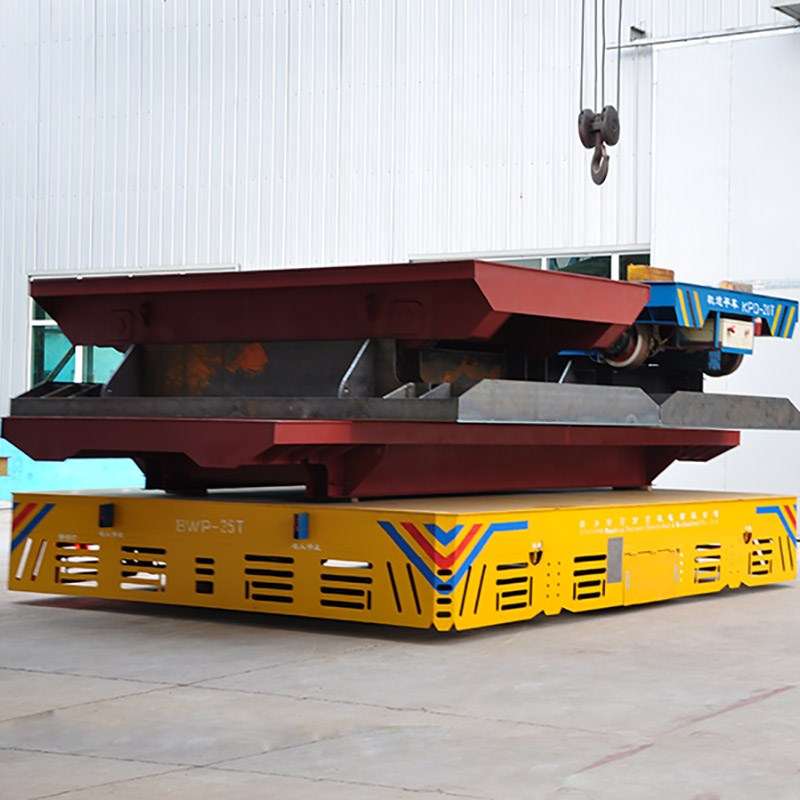

Description of motrized trackless cart

The motrized trackless cart is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This motrized trackless cart has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard heavy duty design is controlled by a hand held push button controller with small turning radius.

Details of motrized trackless cart

25T transfer trolley motorized trackless cart for crossing workshop

Technical Parameter of motrized trackless cart

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Max. Wheel Load (t)	2.8	5.6	7.7	10	12
Ground Requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table Size (mm)	3000 X 2000	4500 X 2200	5000 X 2200	5500 X 2300	6000 X 2300
Height (mm)	450	600	650	700	700
Wheel Base (mm)	1500	1700	1700	1800	1800
Axles Distance (mm)	2500	3900	4300	4800	5200
Turning Radius (mm)	2501	3901	4301	4801	5201
Turning Structure	Mechanical
Motor Power (KW)	3.5	7	10	12	15
Wheel Diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel Material	ZG55+hydropurture
Running Speed (m/min)	0-15			0-12
Brake Principle	Electric magnetic brake
Operation Method	Raido Remote Control
Battery Maintainance	Free of maintainance
Charger's Installation	Installed on cart			Split-type
Cart Color	Customized
Charger's Function	Automatically cut off the power when the battery is fully charged
Radar Control	3-0.3 m, Automatic stop for obstacles
Warning Equipment	Horn and Flash Light
Other Functions	Turning light, night light and power display

25T transfer trolley motorized trackless cart for crossing workshop
