Customized 7T dragged cable power turning bogie carry heavy duty rubbish box
Description

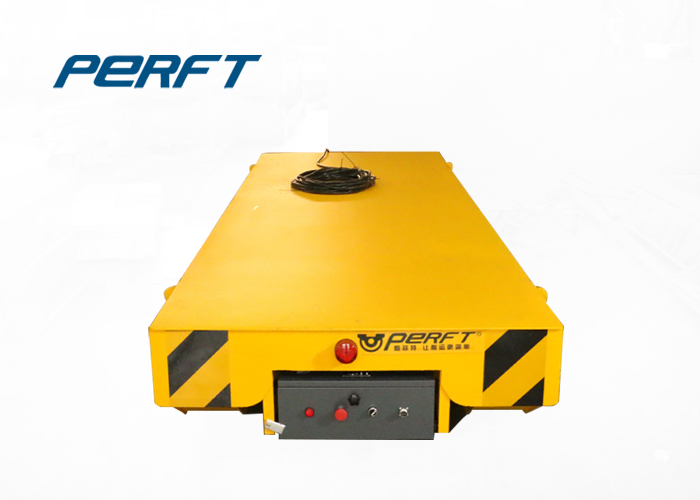

The dragged power flat bogie is powered by a cable. The cable can be towed on the ground. One end of the cable is connected to the ground power supply. It is introduced into the control box through the cable pulley and the traction wire rope, and then the YZ motor is supplied to the flat car. Drag the flat car to run, so it is called a drag cable. Due to the limited length of the cable, the longest transport distance of the tow cable cannot exceed 50 meters, and it is too long to wind the wire.
The flat car adopts the box girder structure, and the wheels are processed by heat processing, heat treatment, and large load factor. The truck can be customized according to customer needs, such as color, table size, load capacity, function, PLC control system, rail and trackless. We have added a turning function to this van, which not only can move forward and backward but also turn.

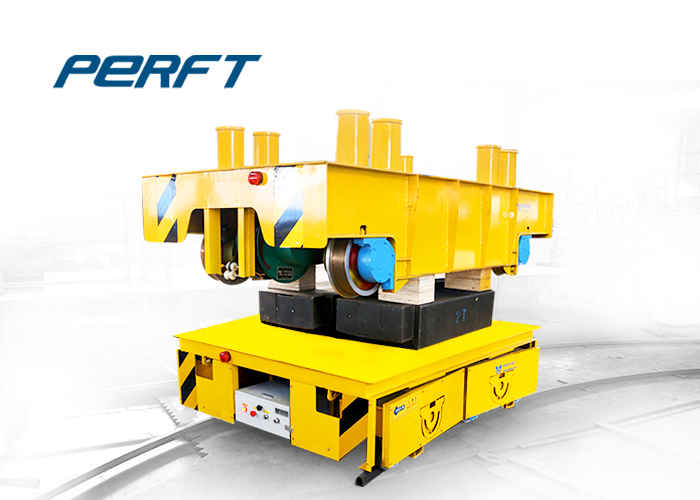

This picture is the car that our customer ordered. From this picture, we can see that the following car is the one ordered by the customer. The weight of our company is for the flat car. From the experiment, we can see that this transport is 7 tons. The goods are absolutely no problem.
Advantages
- Maintenance-free, long service life, as long as it can be moved, steel can be used without rust.
- Suitable for short distance transportation
- High efficiency, large load capacity, can transport a lot of materials at a time
- One person is enough to save costs and save manpower
- Simple operation, with remote control button and joystick operation
- There are people stop and danger warning lights on the car, safe operation
Application
Towed cable trucks can be used for short-distance transportation. They can be transported indoors or outdoors. They are mainly used in large steel plants, accessory factories, shipyards, and mold factories.
Technical parameters:
| Model | BTL-10t |
| Rated Load(t) | 10 |
| Table Size(mm) | Length( L) | 3600 |
| Width( W) | 2000 |
| Heigth( H) | 500 |
| Wheel Base(mm) | 2600 |
| Rail Inner Gauge(mm) | 1435 |
| Wheel Diameter(mm) | 300 |
| Wheel Quantity | 4 |
| Ground Clearance(mm) | 50 |
| Running Speed(m/min) | 25 |
| Motor Power(Kw) | 1.5 |
| Max Wheel Load(KN) | 42.6 |
| Reference Weight(t) | 3.8 |
| Recommended Rail Model | P18 |
Successful case
The UAE has ordered a BTL towed cable carrier in our company. The materials below 7 tons can be transported. The load is 7 tons and the table size is 300*400. The order of our truck is mainly used to transport the garbage bin. The garbage can is transported from the garbage station to the garbage disposal plant. We also installed the turning function for this car, which can be more flexible when transported, and the running speed is appropriate to ensure smooth transportation.
