Yellow Color Electric 10t Industrial Transfer Cart Heavy Load Battery Powered

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

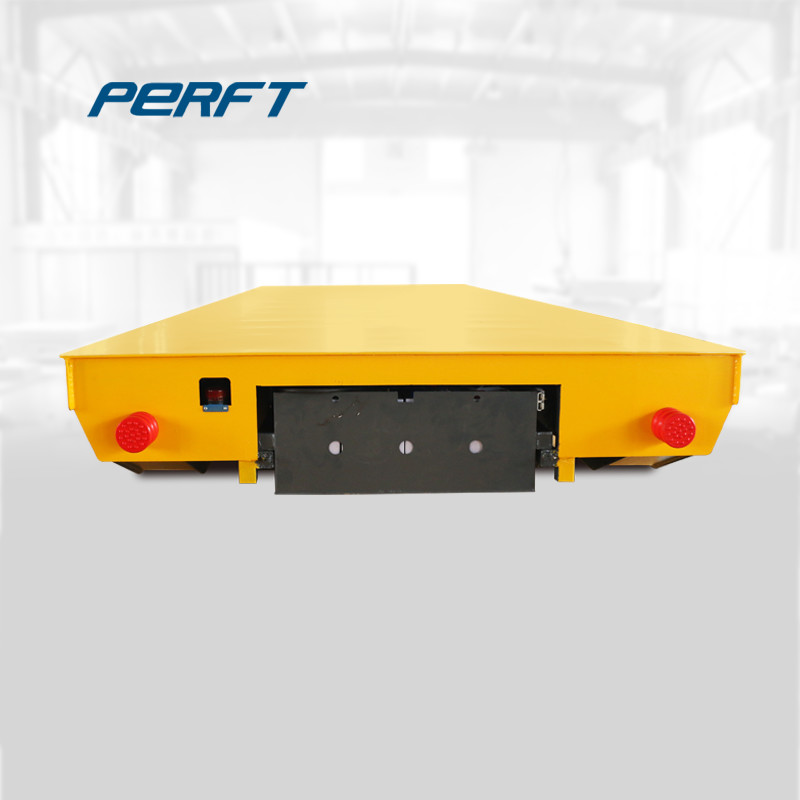

Yellow Color Electric 10t Industrial Transfer Cart Heavy Load Battery Powered

Brand Name : PERFECT

Model Number : power line trolley

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 1000~20000SET

Payment Terms : L/C, T/T

Supply Ability : 100sets month

Delivery Time : 20 wok days after received balance payment

Packaging Details : trap and wooden case

Product Name : power line trolley

Type : power line trolley

Item : Cart

Material : Q235

Usage : Heavy Duty

Name : power line trolley

Capacity : 2T(Customized)

Certificates : CE ISO SGS

Contact Now

Yellow color Electric 10t Heavy Load battery powered industrial transfer cart



Introduction:
PERFECT Rail Flat Trolley is used to transport heavy machinery and material for industry and construction site etc. This Rail Flat Trolley is designed to be an extremely cost effective, safe and flexible load moving alternative.
They are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The Rail Flat Trolley is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100



Yellow Color Electric 10t Industrial Transfer Cart Heavy Load Battery Powered



Advantages:



--- Low noise It causes low noise level.
--- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
--- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
--- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
--- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
Technology Progress of power line trolley


Yellow Color Electric 10t Industrial Transfer Cart Heavy Load Battery Powered




Package of power line trolley
Our power line trolley not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The power line trolley body is packed with tarp, and the wheel and parts of the power line trolley will be packed with wooden case. According the table size and quantity, the power line trolley would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.

Yellow Color Electric 10t Industrial Transfer Cart Heavy Load Battery Powered
