25m/Min Handling 300T Battery Transfer Cart Vehicle

Brand Name : Perfte

Model Number : Battery Power Electric Transfer Cart

Certification : CE, ISO, SGS

Place of Origin : Henan, China(mainland)

MOQ : 1 Set

Price : $7500-$8000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 60 set per month

Delivery Time : 5-8 work days

Packaging Details : The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.

After-sales service provided : Field maintenance and repair service

Color : Customized

Product name : Large-scale machinery and equipment handling battery transfer vehicle

Warranty : 12 Month Long Guarantee

Capacity : 1-300T

Power supply : Battery

Material : Q235 Steel

Running speed : 0-25m/min(Adjustable)

Contact Now

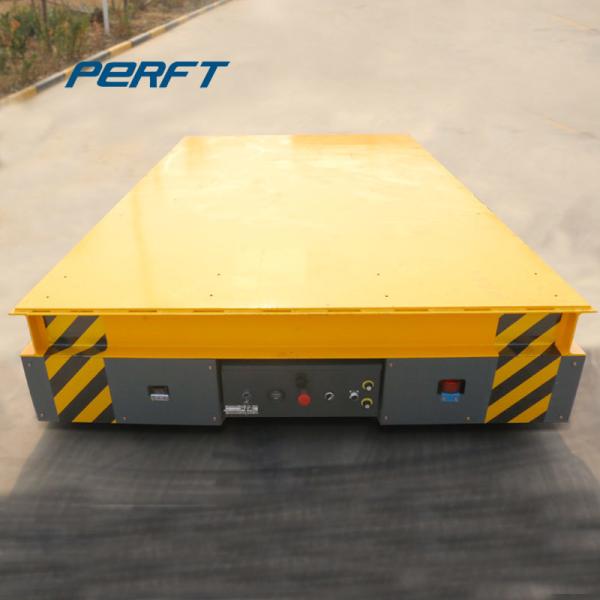

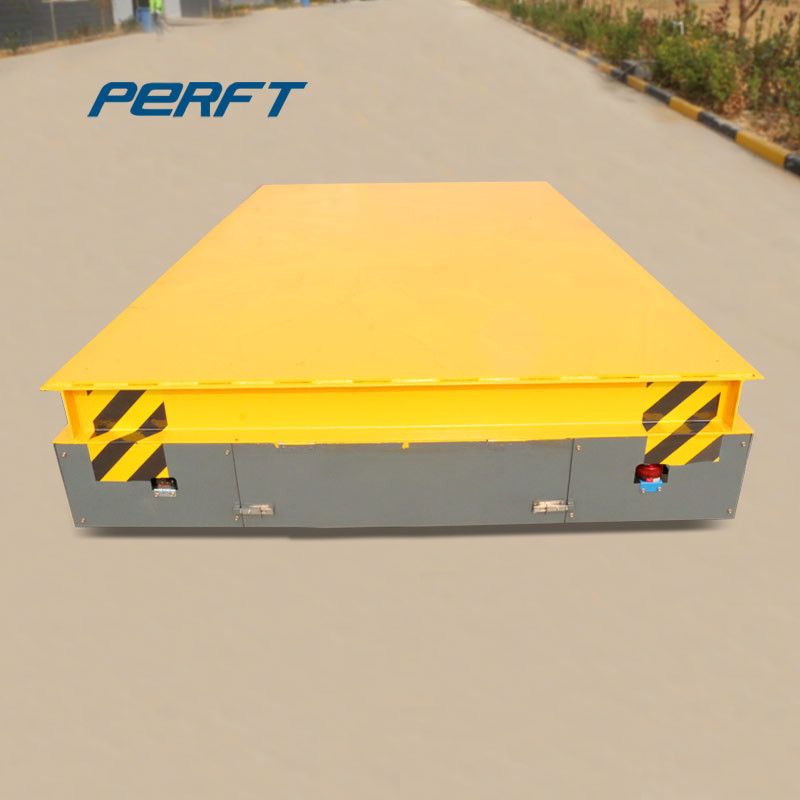

          Large-scale machinery and equipment handling battery transfer vehicle
The battery-powered transfer vehicle is a transfer vehicle powered by a battery. The battery is installed inside the vehicle body. The power supply provides power to the DC traction motor through the electrical control system, so that the transfer vehicle starts, stops, forwards, reverses, and adjusts speed.This series of flat cars can be used in vertical rails, L-shaped rails, S-shaped rails, curved rails and explosive and ferry occasions.
25m/Min Handling 300T Battery Transfer Cart Vehicle
The flat car can be equipped with a hydraulic lifting system. The flat car DC motor has the advantages of stable starting, large starting torque, small impact on the reducer, low voltage, and long service life.

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter (mm) 270 350 500 600 600
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(km) 6.5 4.8 4 3.8 3.2
Recommended Rail Model P15 P24 P43 QU100 QU100

We make sure that the load bearing safety factor of the trolley is no less than 120%.We also provide freely design of the auxiliary device or foundation drawing, and offer the technical service and drawing material.
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!25m/Min Handling 300T Battery Transfer Cart Vehicle​​25m/Min Handling 300T Battery Transfer Cart Vehicle
