Customized 1-300t industrial Material Handling Battery Drive Transfer Trolley

Name: Customized 1300t industrial Material Handling Battery Drive Transfer Trolley
Brand: Material Handling Battery Drive Transfer Trolley
Price: 2000 USD

Buy cheap Customized 1-300t industrial Material Handling Battery Drive Transfer Trolley product

Brand Name : Material Handling Battery Drive Transfer Trolley

Model Number : Material Handling Battery Drive Transfer Trolley

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 2000~8000SET

Supply Ability : 100 SETS MONTH

Delivery Time : 20 work days after received balance payment

Packaging Details : TRAP AND WOODEN CASE

Product Name : Material Handling Battery Drive Transfer Trolley

Color : Customized

Application : Transfer Materials

Capacity : 1-300ton

Running speed : 0-20m/min

after-sales Service Provided : Engineers available to service machinery

table size : Customized

hight : Customized

Contact Now

Material Handling Battery Drive Transfer Trolley

Description of Battery Drive Transfer Trolley

All can be customized as per customers’ requirement.And our business is meeting your business need, hope our professional team can help you well with rich experience.

The battery drive transfer trolley is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This battery drive transfer trolley has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard heavy duty design is controlled by a hand held push button controller with small turning radius.The heat insulating material is used in the battery drive transfer trolley to resist the high temperature. Usually two motors are prepared, so when one is damaged by the ladle’s high temperature the other can be used to continue the work.

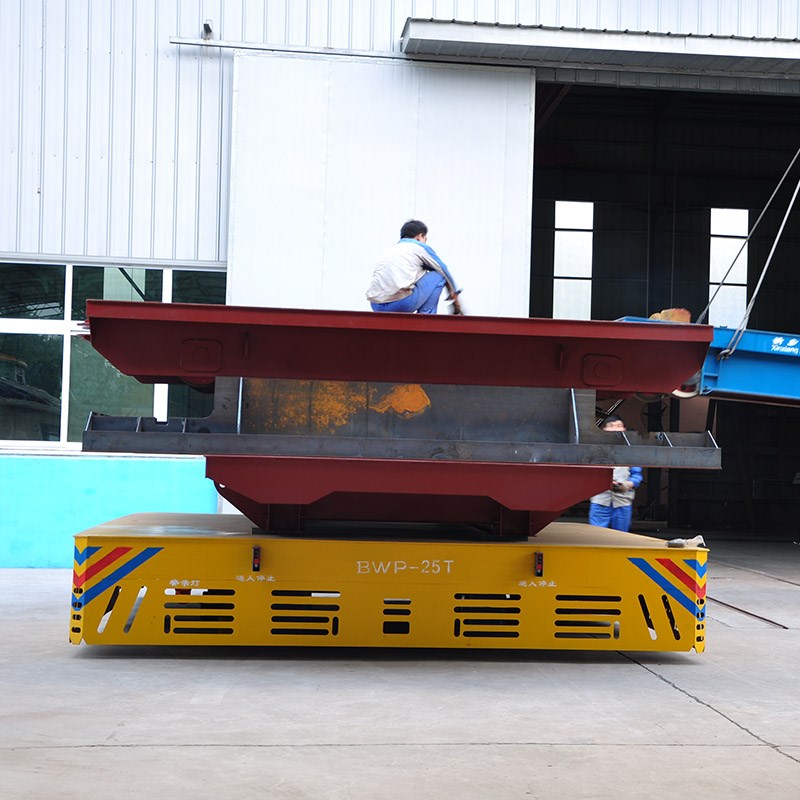

Customer site usage map

Customized 1-300t industrial Material Handling Battery Drive Transfer Trolley

Technical Parameter of battery drive transfer trolley

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Max. Wheel Load (t)	2.8	5.6	7.7	10	12
Ground Requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table Size (mm)	3000 X 2000	4500 X 2200	5000 X 2200	5500 X 2300	6000 X 2300
Height (mm)	450	600	650	700	700
Wheel Base (mm)	1500	1700	1700	1800	1800
Axles Distance (mm)	2500	3900	4300	4800	5200
Turning Radius (mm)	2501	3901	4301	4801	5201
Turning Structure	Mechanical
Motor Power (KW)	3.5	7	10	12	15
Wheel Diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel Material	ZG55+hydropurture
Running Speed (m/min)	0-15			0-12
Brake Principle	Electric magnetic brake
Operation Method	Raido Remote Control
Battery Maintainance	Free of maintainance
Charger's Installation	Installed on cart			Split-type
Cart Color	Customized
Charger's Function	Automatically cut off the power when the battery is fully charged
Radar Control	3-0.3 m, Automatic stop for obstacles
Warning Equipment	Horn and Flash Light
Other Functions	Turning light, night light and power display

Service

Our commitment: The load bearing safety factor of the electric 25 ton transfer cart is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers.
During the warranty period, if our electric 25 ton transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
