high quality 50t industry battery powered transfer flat cart on rail

Name: high quality 50t industry battery powered transfer flat cart on rail
Brand: battery powered transfer flat cart on rail
Price: 3000 USD

Buy cheap high quality 50t industry battery powered transfer flat cart on rail product

Brand Name : battery powered transfer flat cart on rail

Model Number : battery powered transfer flat cart on rail

Certification : CE ISO SGS

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : USD 3000~7500 SET

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : battery powered transfer flat cart on rail

Warranty : 12 Months

Application : Industrial Filed

Feature : Easy Operation

Capacity : 1-300ton

after-sales Service Provided : Engineers available to service machinery

Contact Now

high quality 50t industry battery powered transfer flat cart on rail

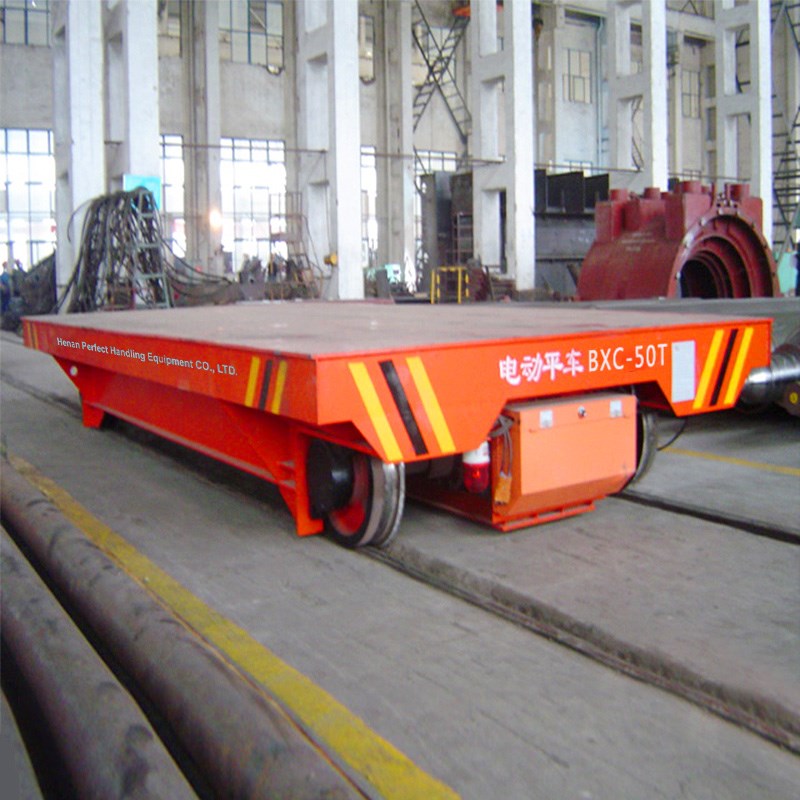

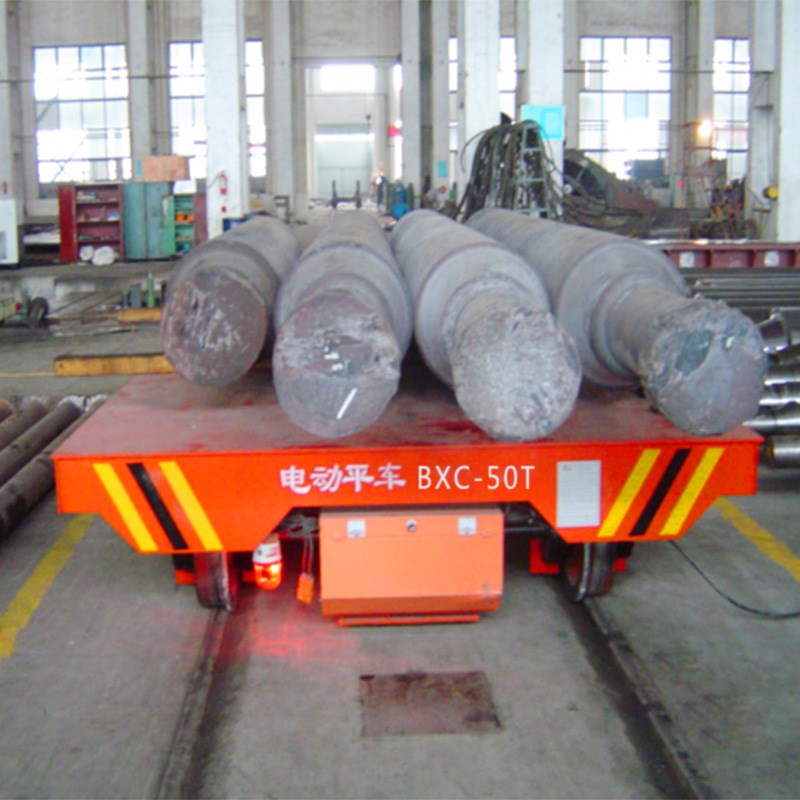

This battery powered transfer flat cart on rail is usually used at ship yard, plant and factory, certain production line. The platform rail cart get power from the storage battery. The battery is installed inside the cart. The transfer flat car with wheels was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. It is usually used to transport the heavy and oversized loads such as dies, coils, equipment and other heavy materials. Our battery powered transfer flat cart on rail is available specifically designed to suit the needs of our customers.

Model	BXC-2T	BXC-5T	BXC-20T	BXC-50T	BXC-100T
Rated Load(T)	2	5	20	50	100
Length(mm)	2000	3500	4000	5500	6500
Width(mm)	1500	2000	2200	2500	2800
Height(mm)	450	500	550	650	900
Wheel Base(mm)	1200	2500	2800	4200	4900
Rail Inner Gauge(mm)	1200	1435			2000
Wheel Diameter(mm)	270	300	350	500	600(heavy)
Ground Clearance(mm)	50				75
Running Speed(m/min)	0-25		0-20
Motor Power(Kw)	1	1.2	2.2	5	10
Max Wheel Load(KN)	14.4	25.8	77.7	174	343.8
Reference Weight(t)	2.8	3.6	5.9	8	14.6
Recommedded Rail Model	P15	P18	P24	P43	QU100

high quality 50t industry battery powered transfer flat cart on rail

Main Features

1) The running distance is unlimited.

2) Simple structure, easy in installation and maintation.

3) The high quality 50t industry battery powered transfer flat cart on rail can run on the C-form track or S-form track.

4) Safety, flexibility, high using frequency, long using time, long service life.

5) Custom deck configurations may include lift, tilt, or rotate function.

6) Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
