Motorized Battery Transfer Cart Wagon For Industrial Material Handling Equipment

Name: Motorized Battery Transfer Cart Wagon For Industrial Material Handling Equipment
Brand: PERFECT
Price: 3000 USD

Buy cheap Motorized Battery Transfer Cart Wagon For Industrial Material Handling Equipment product

Brand Name : PERFECT

Model Number : motorized transport wagon

Certification : CE ISO SGS

Place of Origin : Henan, China (Mainland)

MOQ : 1set

Price : USD 3000~7900set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : motorized transport wagon

Table Size : Customized

Height : Customized

Running Speed : 0-20/min(Adjustable)

Capacity : 1-300ton

Application : Industrial Filed

after-sales Service Provided : Engineers available to service machinery

Contact Now

Motorized Battery Transfer Cart Wagon For Industrial Material Handling Equipment

The motorized transport wagon is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This Trackless Car has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard heavy duty design is controlled by a hand held push button controller with small turning radius.

Motorized Battery Transfer Cart Wagon For Industrial Material Handling Equipment

Technical Parameter of Trackless Car

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Max. Wheel Load (t)	2.8	5.6	7.7	10	12
Ground Requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table Size (mm)	3000 X 2000	4500 X 2200	5000 X 2200	5500 X 2300	6000 X 2300
Height (mm)	450	600	650	700	700
Wheel Base (mm)	1500	1700	1700	1800	1800
Axles Distance (mm)	2500	3900	4300	4800	5200
Turning Radius (mm)	2501	3901	4301	4801	5201
Turning Structure	Mechanical
Motor Power (KW)	3.5	7	10	12	15
Wheel Diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel Material	ZG55+hydropurture
Running Speed (m/min)	0-15			0-12
Brake Principle	Electric magnetic brake
Operation Method	Raido Remote Control
Battery Maintainance	Free of maintainance
Charger's Installation	Installed on cart			Split-type
Cart Color	Customized
Charger's Function	Automatically cut off the power when the battery is fully charged
Radar Control	3-0.3 m, Automatic stop for obstacles
Warning Equipment	Horn and Flash Light
Other Functions	Turning light, night light and power display

Product Tags:

battery operated cart

battery powered cart

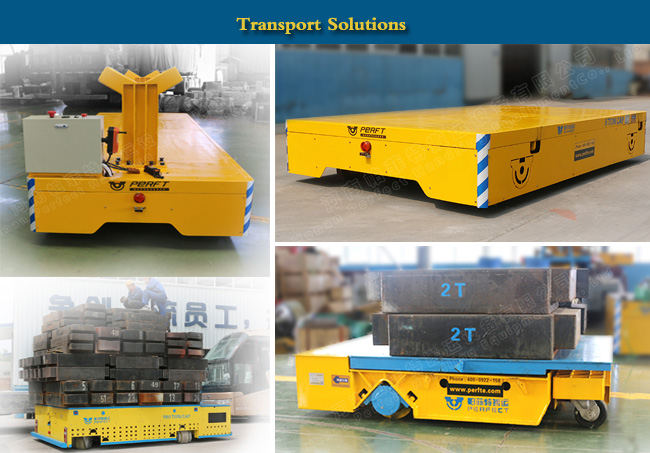

Motorized Battery Transfer Cart Wagon For Industrial Material Handling Equipment Images
