15 ton automated low flatbed trackless transfer cart for ship industry transport

Name: 15 ton automated low flatbed trackless transfer cart for ship industry transport
Brand: automated low flatbed trackless transfer cart
Price: 3000 USD

Buy cheap 15 ton automated low flatbed trackless transfer cart for ship industry transport product

Brand Name : automated low flatbed trackless transfer cart

Model Number : automated low flatbed trackless transfer cart

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 3000~8200 SET

Supply Ability : 100 SETS MONTH

Packaging Details : trap and wooden case

Load Capacity : 1-300T

Table Size : Customized

Height : Customized

Running Speed : 0-50/min(Adjustable)

after-sales Service Provided : Engineers available to service machinery

Contact Now

automated low flatbed trackless transfer cart for ship industry transport

Our company is a collection of research and development, design, manufacturing as one of professional international manufacturing company of automated low flatbed trackless transfer cart. Our company has been founded for 13 years and has become enterprise in the motorized automated low flatbed trackless transfer cart business.

The BWP series automated low flatbed trackless transfer cart is consisted of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and fault diagnosis module. other functions. It can turn around on the cement floor.All the automated low flatbed trackless transfer cart are equipped with warning alarm and security detection apparatus, and the alarm would ring and the automated low flatbed trackless transfer cart would stop immediately if there was any obstacle or pedestrian in the running path of the automated low flatbed trackless transfer cart. Also, we will provide intelligent automatic rapid charger with the automated low flatbed trackless transfer cart. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if it’s necessary.

Site map for customer use

15 ton automated low flatbed trackless transfer cart for ship industry transport

Technical Parameters

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Impacted rated load(t)	7.5	30	45	60	75
Structure of Frame	Steel plates welded, beam
thickness of the steel plate	8	14	14	16	16
Cart weight(t)	4.3	7.9	8.8	10	10.5
Max. wheel load (t)	2.8	5.6	7.7	10	12
Ground requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table size (mm)	3000 X 2000	4500 X 2200	5000 X 2200	5500 X 2300	6000 X 2300
Height of the whole cart (mm)	450	600	650	700	700
Wheel base (mm)	1500	1700	1700	1800	1800
Axles distance (mm)	2500	3900	4300	4800	5200
Turning radius (mm)	2501	3901	4301	4801	5201
Turning type	Turning while driving with no stop
Control method for turning	Control button
Turning structure	Mechanical
Motor power (KW)	3.5	7	10	12	15
Wheel diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel material	ZG55+hydropurture
Running speed (m/min)	0-15			0-12
Brake principle	Electric magnetic brake
Ground balance	Mechanical automatic adjustment
Operation method	With wire or no wire
Battery model	D-250 24pieces	D-440 24pieces	D-250 36pieces	D-330 36pieces	D-440 36pieces
Battery maintainance	Free of maintainance
Charger's installation	Installed on cart			Split-type
Cart color	Yellow and warning sign
Charger's function	Automatic stop for obstacles
Radar control	3-0.3 m, Automatic stop for obstacles
Warning equipment	Sound and light
Other functions	Turning light, night light and power display

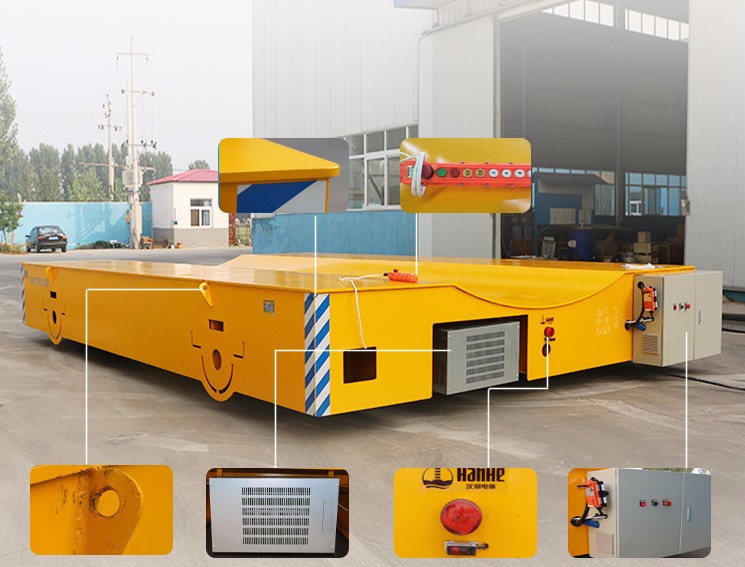

Detailed Image Of automated low flatbed trackless transfer cart

15 ton automated low flatbed trackless transfer cart for ship industry transport

Product Tags:

battery transfer carriage

battery powered cart

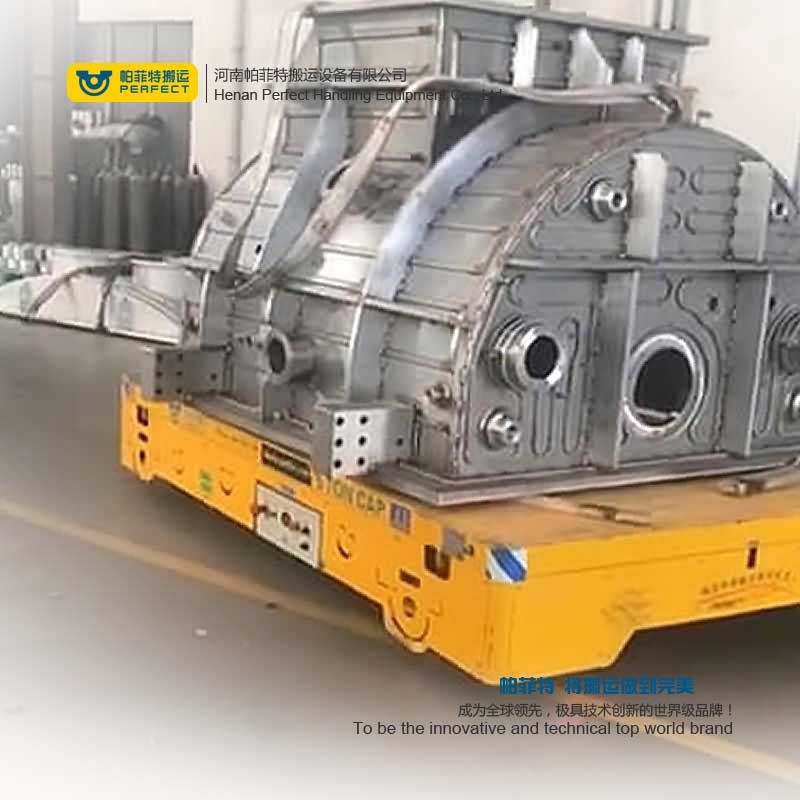

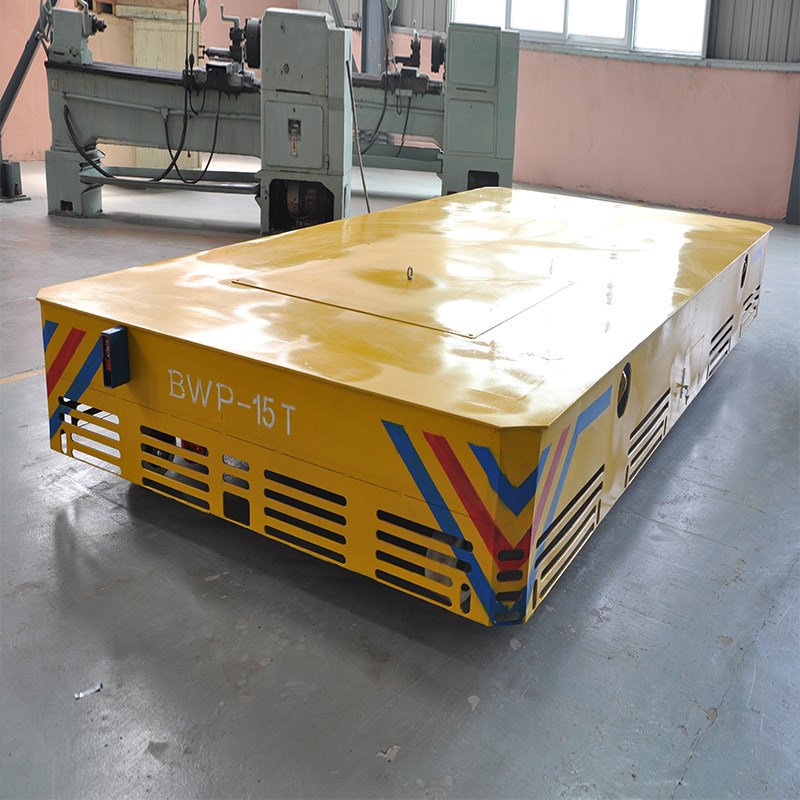

15 ton automated low flatbed trackless transfer cart for ship industry transport Images
