Customized Automatic Steering Material Transfer Trolley Device With Alarm Light

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

Customized Automatic Steering Material Transfer Trolley Device With Alarm Light

Brand Name : automatic guided vehicle

Model Number : automatic agv transfer cart

Certification : CE ISO SGS

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : USD 2000~7800 SET

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : automatic agv transfer cart

Application : Industrial Filed

Color : as your needs

Table size : customized

Running speed : 0-20m/min

after-sales Service Provided : Engineers available to service machinery

Contact Now

customized automatic Steering Device Steel Trolley Car Transporter with Alarm Light

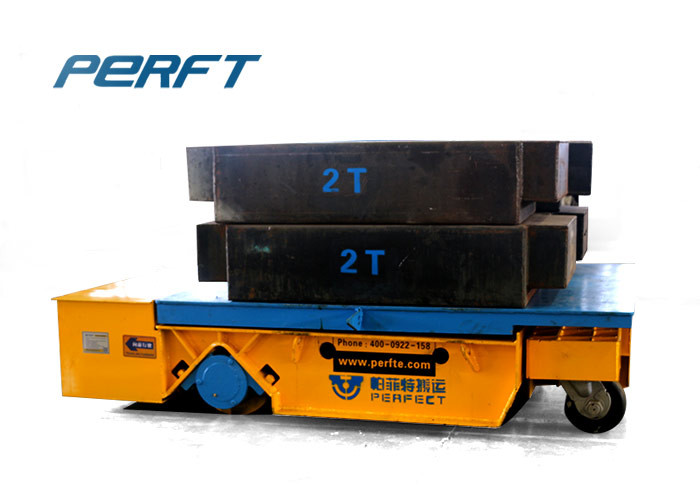

Product Description of Trolley Car Transporter


Trolley Car Transporter is movable platform used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, they are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.
The Trolley Car Transporter is without limitations to track length and distance due to it is free from the cable powered mould. And our standard heavy-duty design is controlled by a hand held joy stick or remote control with all wheel steering and small turning radius.



Customized Automatic Steering Material Transfer Trolley Device With Alarm Light



Characters of Trolley Car Transporter

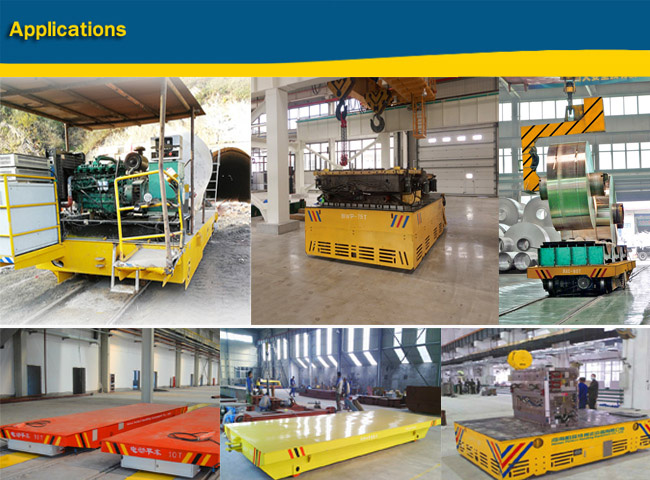

--The Heavy Loads Trolley Car Transporter can be used to transfer any industrial cargo or factory heavy equipment, such as steel coils, steel pipes, ladle or billets, roller, pallet, prefabricated concrete, cement packets, etc.
--The Heavy Loads Trolley Car Transporter can be used in painting room, melt shop, storage warehouse, foundry plant, shipyard, 5S workshop, agriculture, etc.
--All of our Heavy Loads Trolley Car Transporter is equipped with such safety device: Alarm lights, buffer, emergency stop buttons and radar sensor.
--The Heavy Loads Trolley Car Transporter is designed depend on the working condition. You can add special function, such as lifting table, high temperature resistance, anti-explosion, etc.


Customized Automatic Steering Material Transfer Trolley Device With Alarm Light



Advantages Show
----agv transfer cart

Powered by storage battery

Factory history of 15 years

Turning at a minimum radius

Safety PU wheels for protection

Running an unlimited way

Operate easily

Maintenance convenient





Customized Automatic Steering Material Transfer Trolley Device With Alarm Light


Parameter List

Model
 BWP-2T BWP-10T BWP-20T BWP-30T BWP-50T BWP-63T BWP-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000= 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
