Trackless Steerable Material Transfer Trolley

Henan Perfect Handling Equipment Co., Ltd.
Contact Now

Trackless Steerable Material Transfer Trolley

Brand Name : PERFECT

Model Number : Trackless Steerable Transfer trolley

Certification : CE ISO SGS

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : USD 1300~13000 SET

Supply Ability : 100sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : Trackless Transfer trolley

Capacity : 1-300ton

Color : Customized

Control Method : Remote Control/Pendant

after-sales Service Provided : Engineers available to service machinery

Contact Now

Trackless Steerable Transfer trolley transportation cart



Henan Perfect Motorized Carriers Co., Ltd is a collection of research and development, design, manufacturing asone of professional international manufacturing company of Motorized Carriers. Our company has been founded for 13 years and has become enterprise in the motorized transfer Motorized Carriers business.
Trackless Steerable Material Transfer Trolley

This BTL Motorized Carriers powered by dragging cable. The towline is alternative to prevent the cable from abrasion if necessary. Hydraulic lifting system can be mounted on the Motorized Carriersto meet the demand for car lifting. PLC mounted on the Motorized Carriers can realize full automation operation.

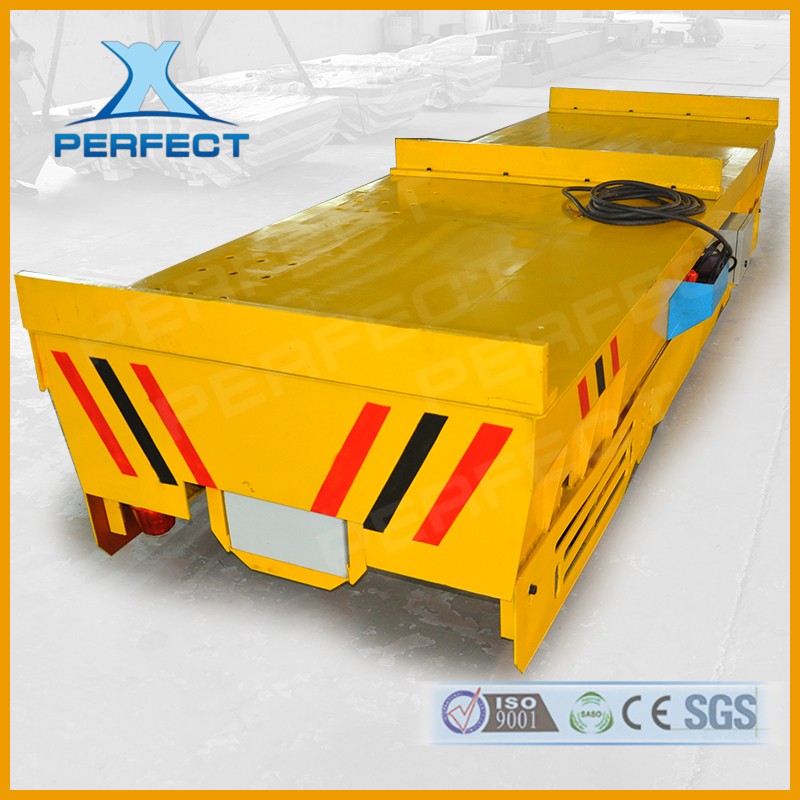

Detailed Image Of Motorized Carriers

Trackless Steerable Material Transfer Trolley

Why choose us?

Trackless Steerable Material Transfer Trolley

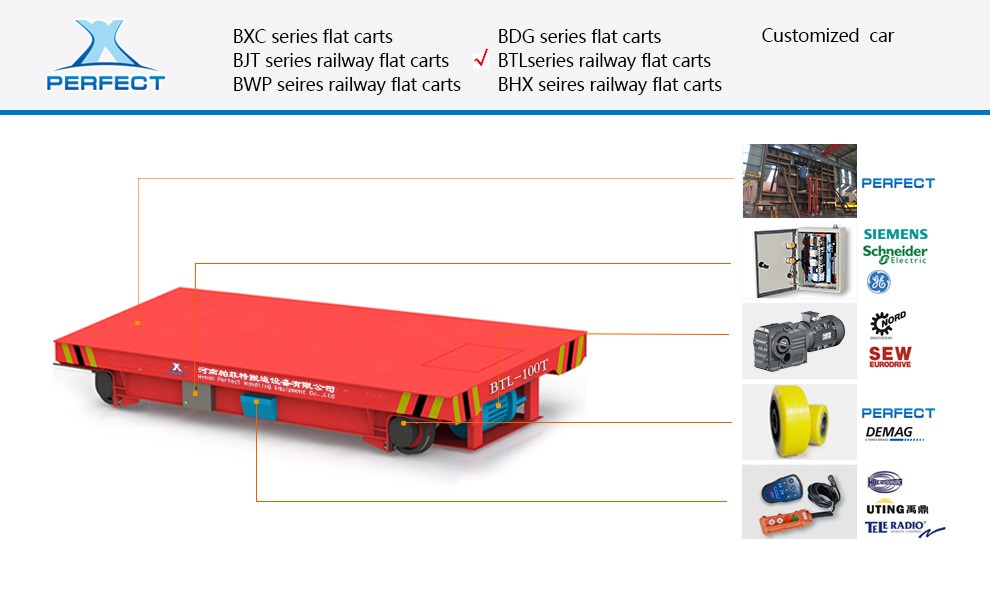

Components Of Motorized Carriers

Trackless Steerable Material Transfer Trolley



Technical Parameters Of Motorized Carriers
Model BTL-2t BTL-20t BTL-50t BTL-100t BTL-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 25 20 20 20 18
Motor Power(kw) 0.8 2.5 5.5 11 15
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.3 5.5 7.6 13.9 26
Recommended Rail Model P15 P24 P43 QU100 QU100
Functions & Advantages Of Motorized Carriers
  • The Motorized Carriers are Anti-explosion,Anti-high temperature;
  • The Motorized Carriers are simple structure, low cost ; Motorized Carriers Motorized Carriers
  • The Motorized Carriers are with lifting holes, convenient to shipment;Motorized Carriers
  • The Motorized Carriers are soft start, big starting power, long lifetime Motorized Carriers
  • The Motorized Carriers can running on the cement or the shape of "S" & "C" rail Motorized Carriers
  • The Motorized Carriers are running distance is limited ;Motorized Carriers Motorized Carriers
  • The Motorized Carriers are safe and convenient operation Motorized Carriers Motorized Carriers
  • The Motorized Carriers are high using frequency ;
  • The Motorized Carriers are unlimited using time .

Trackless Steerable Material Transfer Trolley

Application Sites Of Motorized Carriers

Trackless Steerable Material Transfer Trolley

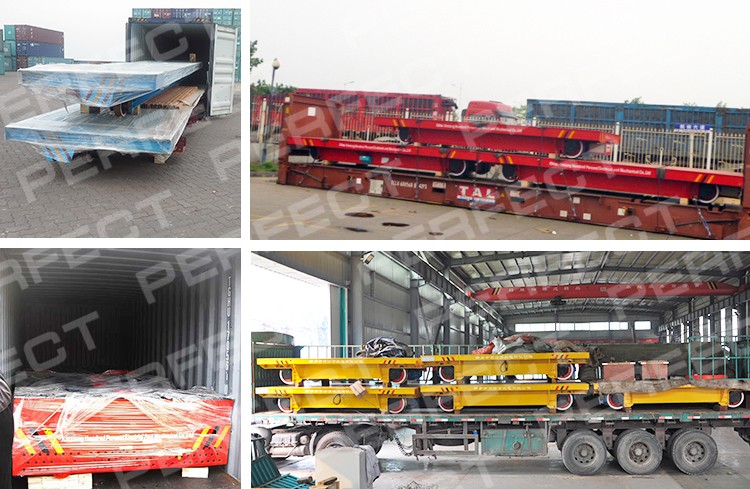

Packing & Delivery Of Motorized Carriers

Trackless Steerable Material Transfer Trolley



The Certificates

Trackless Steerable Material Transfer Trolley





Customer Photos

Trackless Steerable Material Transfer Trolley



After-sales Service
  • Our commitment: The load bearing safety factor of the Motorized Carriersis no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.Motorized Carriers
  • During the warranty period, if our Motorized Carriers can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

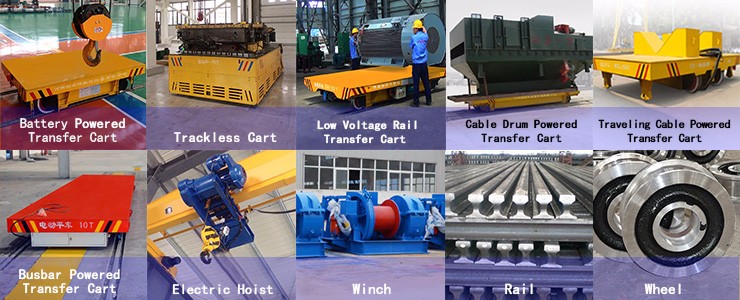

Related Motorized Carriers
