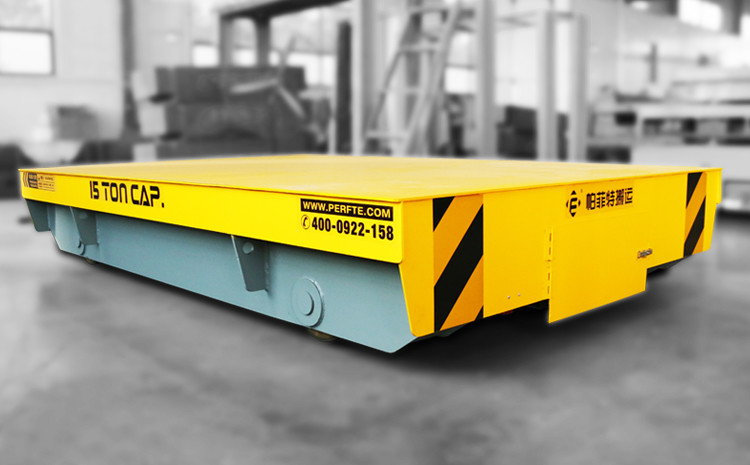

Industrial Cable Drum Power Railroad Cart For 10T Liquid Steel Transport

Brand Name : cable drum power railroad 15T transfer cart

Model Number : cable drum power railroad 15T transfer cart

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 4000~8000set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : cable drum power railroad 15T transfer cart

Usage : Heavy Duty

Color : Customized

Capacity : Customized

Running speed : 0-20m/min

after-sales Service Provided : Engineers available to service machinery

Contact Now

10T Liquid Steel Transport industrial cable drum power railroad cart





Introductions


Our BXC series ladle transfer cart is powered by battery. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed. The heat insulating material is used to prevent the high temperature. In case to handle emergency situations, two motors are assemlied in the car to make sure the machine works smoothly when one motor is broken.


Technical Parameter table

Model BTL-2t BTL-20t BTL-50t BTL-100t BDGS-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m)
0-20
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.3 5.5 7.6 13.9 26
Recommended Rail Model P15 P24 P43 QU100 QU100





Technical Process of 15T transfer cart for workshops transfer
  • 1. Moving the steel plate from storage area to cutting process area by crane;
  • 2. According to the cutting drawing cutiting steel plate by the numercial control cutting machine;
  • 3. The mobile welding machine is used for precise welding of diferent parts of the frame;
  • 4. Fine grinding and weld inspection of the weld joint;
  • 5. For every car primer spray, toccat, perfect antirust, ensure th ebeauftiful appearance;
  • 6. Installation of the whole internal parts of the wheel and the car body;
  • 7. Commissioning the vehicle operation and electrical parts, then test after completion of commissoning:
  • 8. Zero load test and load test before shipping.
  • Industrial Cable Drum Power Railroad Cart For 10T Liquid Steel Transport
Packages

For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
