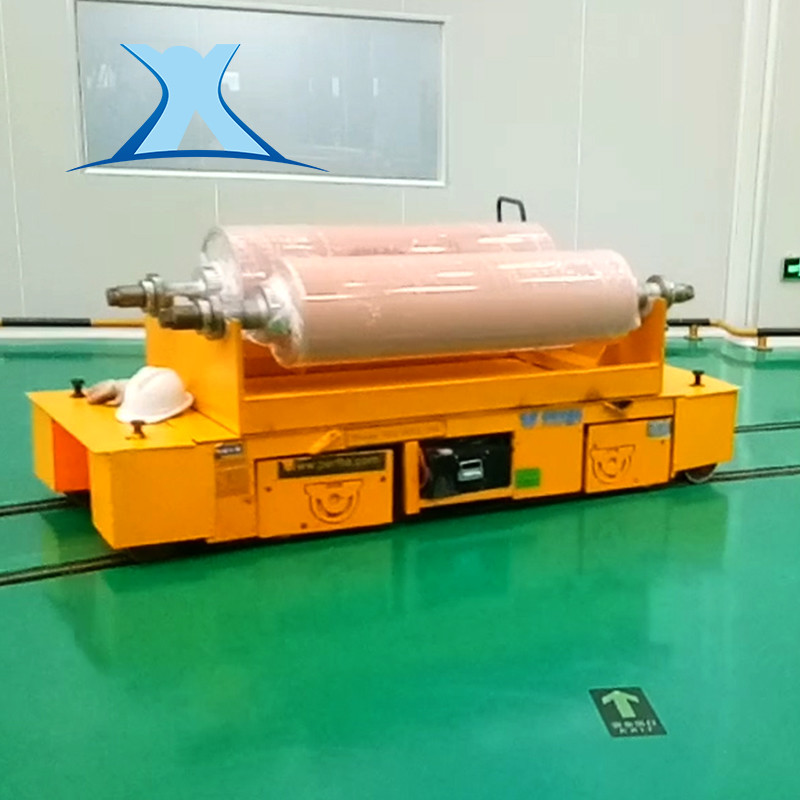

Heavy duty material handling Battery power rail transfer cars for Warehouse
Product Description
PERFECT's transfer carts, also known as cross flat cart, transfer trolley,electric flat cart, have advantages as simple structure, easy operation and maintenance,large load capacity and so on,with which these transfer carts are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across.The rail transfer carts are suitable for various industries, steel mill and factory, paper roll plant,painting room,shipbuilding,new factory building project,machine processing line,heavy industry, airport and so on to transfer or handling material and equipment from one place to another, from warehouse to workshop.
Our Customization
PERFECT is specialized in designing and manufacturing of heavy duty Material Transfer Cart:
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
parameter table
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Q/A
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
