30T Cable Drum Powered Material Transfer Cart In Factory Material Transport

Brand Name : Perfte

Model Number : Material Transfer Cart

Certification : CE ISO SGS

Place of Origin : Henan China

MOQ : 1

Price : Usd5800-7000/set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 40sets/week

Delivery Time : 40 work days after received balance payment

Packaging Details : Trap and wooden case

Product Name : 30T Cable Drum Powered Rail Material Transfer Trolleys in Factory Material Transport

Wheel Diameter(mm) : 300-500

Ground Clearance(mm) : 50-80

Wheel Quantity : 4

Running Speed(m/min) : 0-25

Type : Material Transfer Cart

Supply Mode : Cable Drum Powered

Contact Now

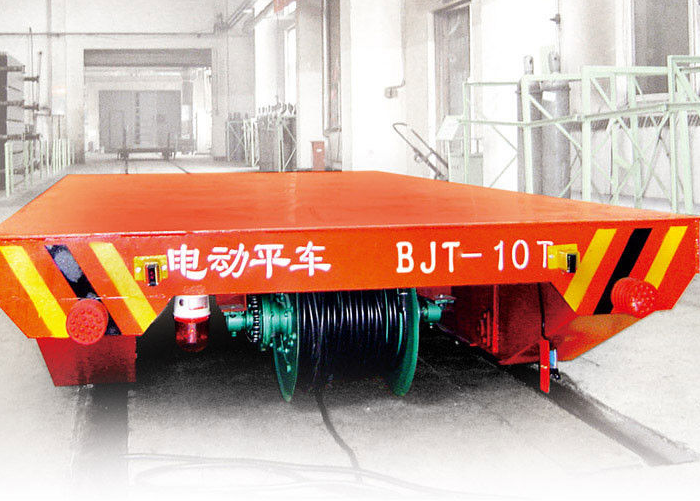

30T Cable Drum Powered Material Transfer Cart In Factory Material Transport







Cable Drum Powered Rail Material Transfer Trolleys



The BJT series 30T Cable Drum Powered Rail Material Transfer Trolleys mains powered and generator are chosen as the power source. The current is supplied and a generator is chosen as the power source. The 30T Cable Drum Powered Rail Material Transfer Trolleys is supplied to pulling motor through the electric control system, which makes the 30T Cable Drum Powered Rail Material Transfer Trolleys start, stop, moving background, turn around and realize other functions. Also, we will provide an intelligent automatic rapid charger with the car. Positioning fixture, lift platform, and other assistive devices are optional to meet different demands on various occasions. The PLC is also alternative if the 30T Cable Drum Powered Rail Material Transfer Trolleys is necessary.

30T Cable Drum Powered Material Transfer Cart In Factory Material Transport





Product Parameters



Model
 BJT-2T BJT-10T BJT-20T BJT-30T BJT-50T BJT-63T BJT-150T
Rated load (T) 2 10 20 30 50 63 150
Table size(mm) length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 500 550 600 650 700 800 1200
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 0.8 1.5 2.5 4 5.5 7.5 15
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100





Advantages

  • Simple structure, easy in installation and maintenance.
  • The 30T Cable Drum Powered Rail Material Transfer Trolleys mounted on rails can run on the C-form track or S-form track.
  • safety, flexibility, high using frequency, long using time, long service life.
  • Custom deck configurations may include lift, tilt, or rotate function.
  • Available safety equipment includes horn, lights, emergency stop, bumpers and detector.

Details of Cable Drum Powered Rail Material Transfer Trolleys
30T Cable Drum Powered Material Transfer Cart In Factory Material Transport





Working Principle

  • 30T Cable Drum Powered Rail Material Transfer Trolleys is powered by the cable drum, the 380V AC power supply is reduced by the transformer to a 36V safe AC voltage.
  • According to work requirements, the load is less than 50 T and connected to the two rails, the 36-volt AC is introduced into the vehicle electrical box through the wheels. The control system converts to DC, and controls the DC motor start, stop, advance, retreat, and adjustment speed of the vehicle.
  • If the load is more than 50 T, a power supply rail needs to be set up in the middle of the track, and the 36 AC is divided into three tracks. The 36 AC is introduced into the vehicle electrical box through the power take-off column, Upgraded to 380V by the on-board transformer to provide the AC motor. Install inverter to achieve AC motor speed control requirements.
  • 30T Cable Drum Powered Rail Material Transfer Trolleys can be used in vertical, s-track, curved rails and high temperature applications.
  • 30T Cable Drum Powered Rail Material Transfer Trolleys can be wired or wirelessly operated, also can be equipped with a PLC system for full automation.





Application

30T Cable Drum Powered Material Transfer Cart In Factory Material Transport
