Yellow Color Motorized Material Transfer Cart On Rail With Ladle Shuttle System

Name: Yellow Color Motorized Material Transfer Cart On Rail With Ladle Shuttle System
Brand: motorized transfer cart on rail
Price: 3000 USD

Buy cheap Yellow Color Motorized Material Transfer Cart On Rail With Ladle Shuttle System product

Brand Name : motorized transfer cart on rail

Model Number : motorized transfer cart on rail

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 3000~7600 SET

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Supply Ability : USD 100 set

Product Name : motorized transfer cart on rail

Capacity : 1-300T

Warranty : 12 Months

Application : Industrial Filed

Feature : Easy Operation

after-sales Service Provided : Engineers available to service machinery

Table Size : Customized

Height : Customized

Contact Now

Yellow Color Motorized Material Transfer Cart On Rail With Ladle Shuttle System

The BJT series motorized transfer cart on rail is powered by cabled drum. The power source 380V alternating-current is supplied to the traction motor by cable. Cable is collected and released by coiling device mounted underneath the motorized transfer cart on rail . The motorized transfer cart on rail can realize full automatic operation by PLC system. The motorized transfer cart on rail can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation. The motorized transfer cart on rail can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the motorized transfer cart on rail needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.

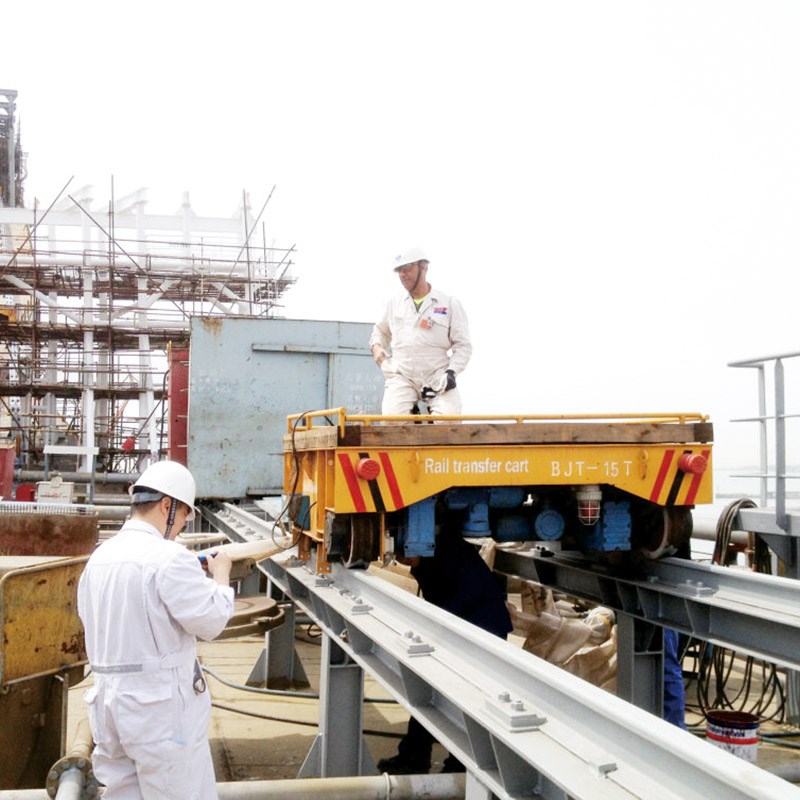

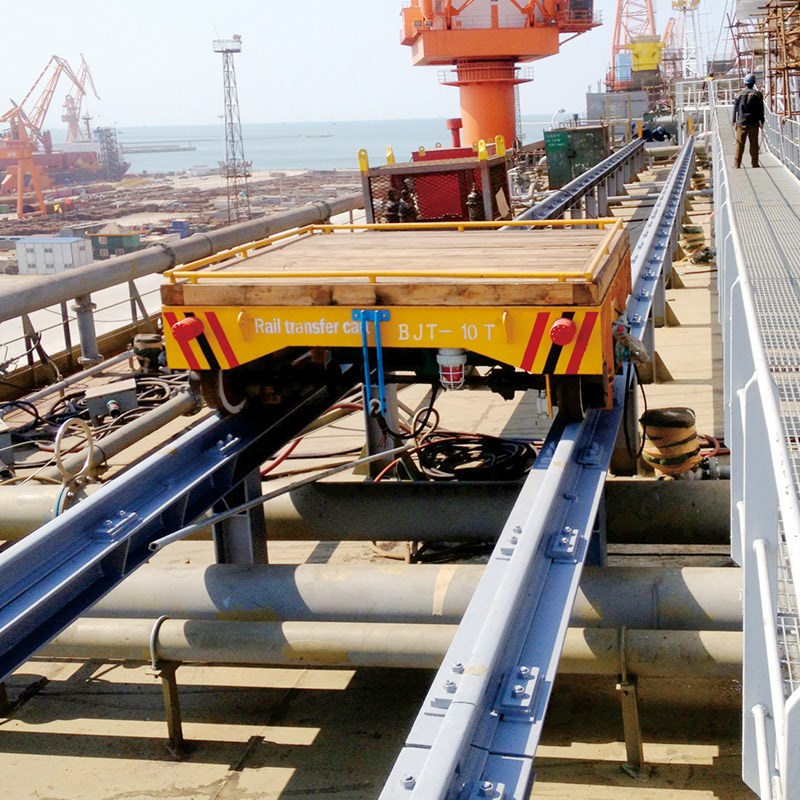

Site map for customer use

Yellow Color Motorized Material Transfer Cart On Rail With Ladle Shuttle System

NOTES:

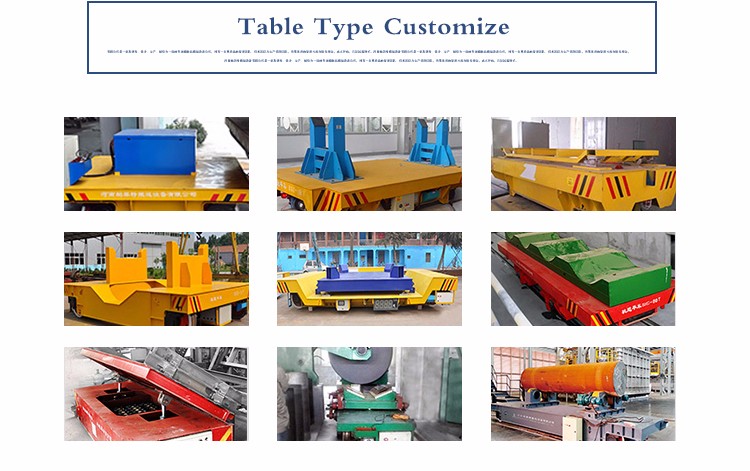

Flat deck or fixtures for transporting special payload;
Custom deck configurations may include lift, tilt, or rotate function;
Payload from 1 ton to 300 tons;
Fixed speed or variable speed capabilities;
On board charging is available if battery drives;
With forward or backing driving;
Options for automatic control;
Available safety equipment includes horn, lights, emergency stop, bumpers and detector.

Technical Parameter of Industrial transfer cart on rail

Model		BJT-2t	BJT-20t	BJT-50t	BJT-100t	BJT-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	500	600	700	1000	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.5	5.6	7.8	14.1	26.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

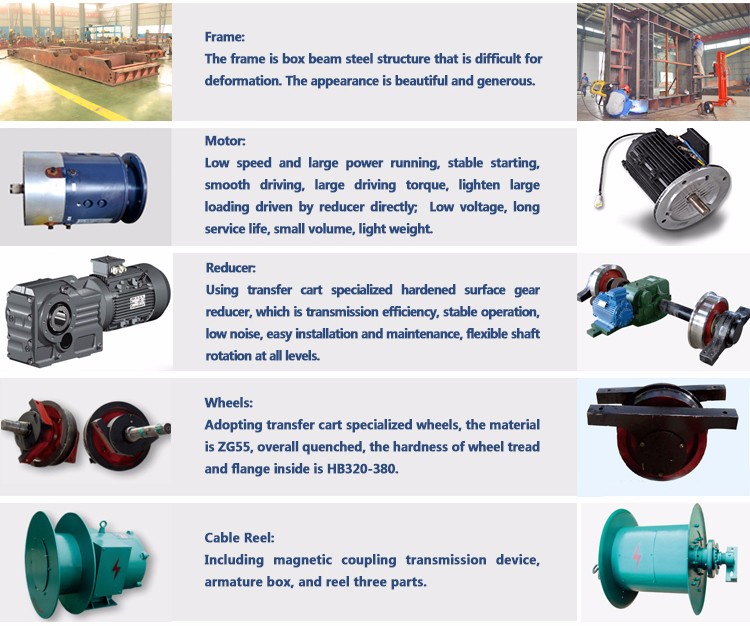

Component of Industrial transfer cart on rail

Yellow Color Motorized Material Transfer Cart On Rail With Ladle Shuttle System
