electric transfer transport cart on rail for heavy material handling equipment
Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of electric transfer transport cart on rail . Our company has been founded for 13 years and has become enterprise in the electric transfer transport cart on rail business.The electric transfer transport cart on rail is powered by the sliding contact line.The alternative current is supplied consistently to the pulling motor by slide knife taken sliding contact line through electric control system.
Detailed Image Of electric transfer transport cart
| Model | 2t | 20t | 50t | 100t | 150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |

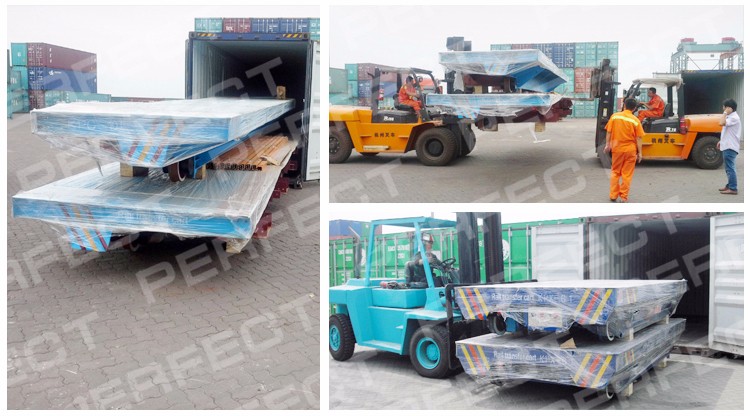

Package of electric transfer transport cart
Our electric transfer transport cart on rail not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The electric transfer transport cart on rail body is packed with tarp, and the wheel and parts of the Rail Electric Vehicle will be packed with wooden case. According the table size and quantity, the electric transfer transport cart on rail would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
Why chose us?
We have got CE, SGS, ISO, CO certificates about our products, and our products have been exported to more than 30 countries and regions.
Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail equipment, BJT cable drum type, BHX safety sliding line type, BXC battery type, BTL towed cable type, BP non-power type, BQY train towed type, BWP trackless type and special type, such as turning cart, trackless cart, ladle car, hydraulic lifting car, ferry car, painting room car, blasting booth car, etc.
