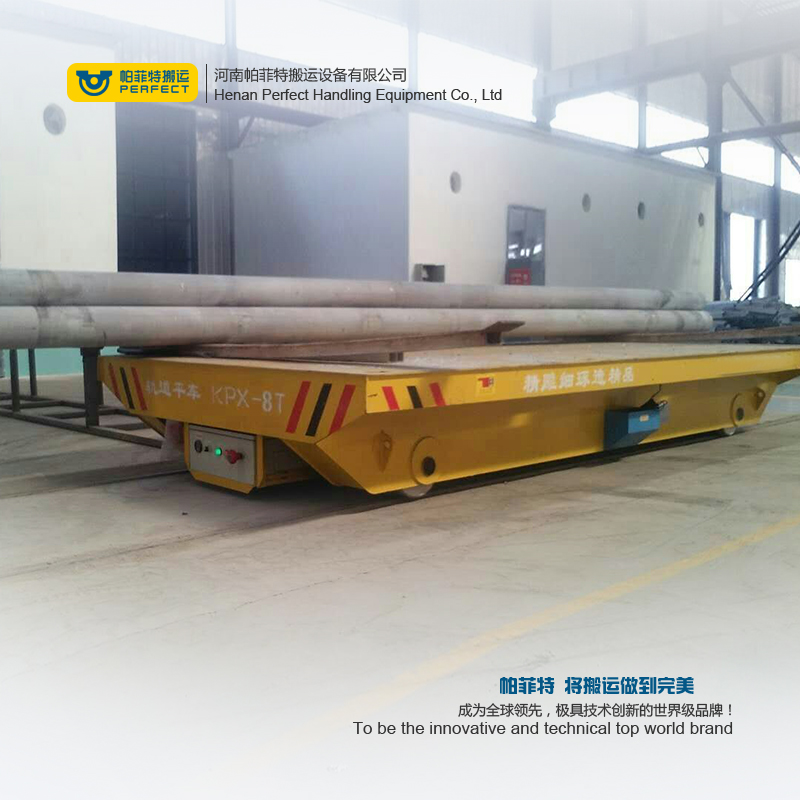

Easy operated in-plant 20 ton transfer cart rail transporter

Product Categories

Henan Perfect Handling Equipment Co., Ltd.

Contact Now

Easy operated in-plant 20 ton transfer cart rail transporter

Name: Easy operated inplant 20 ton transfer cart rail transporter
Brand: 20 ton transfer cart rail transporter
Price: 3000 USD

Buy cheap Easy operated in-plant 20 ton transfer cart rail transporter product

Brand Name : 20 ton transfer cart rail transporter

Model Number : 20 ton transfer cart rail transporter

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1set

Price : USD 3000~8000 set

Payment Terms : L/C,, T/T

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Supply Ability : 100 set month

Product Name : 20 ton transfer cart rail transporter

Application : Transfer Materials

Load Capacity : 1-300T

Control Method : Remote Control/Pendant

Self-weight : 5000-20000kg

Contact Now

Easy operated in-plant 20 ton transfer car rail transporter

The in-plant transfer cart can be powered by battery,low voltage rail,cable drum,trailing cable.There are mounted V-shape and roller on in-plant transfer cart to protect the coil from falling down from the in-plant transfer cart.The V-shape supporting can be designed according to coil diameter,and roller distance can be adjusted as per coil die.V-shape supporting and roller can be removable from the in-plant transfer cart.We can design coil in-plant transfer cart according to the workshop application,material dimension.It can be applied in all kinds of occasion even severe working environment.

Easy operated in-plant 20 ton transfer cart rail transporter

Technical Parameter of in-plant transfer cart

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	500	600	700	1000	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.5	5.6	7.8	14.1	26.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

Customized of in-plant 20 ton transfer cart

Easy operated in-plant 20 ton transfer cart rail transporter
