100 ton Molten Iron Casting Rail Ladle Transfer Car with High Temperature Resistant
The 100ton Molten Iron Casting Rail Ladle Transfer Car with High Temperature Resistant is specially designed to transfer the high-temperature ladle.Owing to its strict requirement on safety & anti-high temperature.The 100ton Molten Iron Casting Rail Ladle Transfer Car with High Temperature Resistant with high strength hardness.The 100ton Molten Iron Casting Rail Ladle Transfer Car with High Temperature Resistant has the advantage of beautiful elegant appearance.

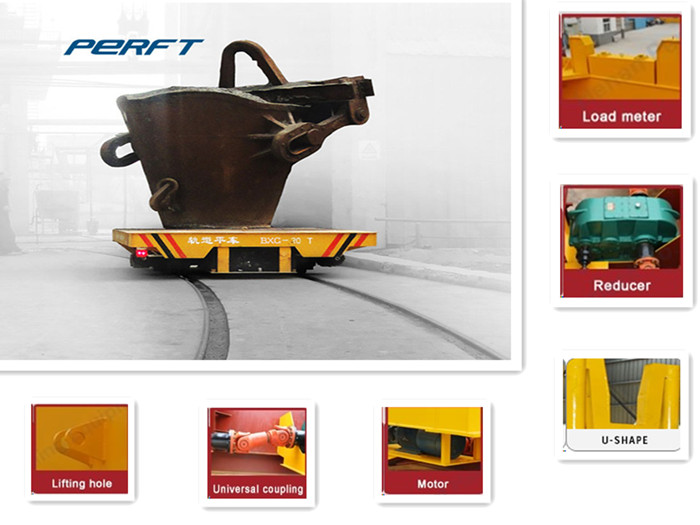

Main Components
Advantages
1. Molten Iron Casting Rail Ladle Transfer Car
2. Battery powered
4. Hoisting holes for easy transportation
5. Steady starting, large starting force and long life.
6. Operate on C-shaped or S-shaped and L-shaped orbits
7. Customizable(capacity,table size,running speed...)
8. Convenine for the hot melton transportation.
9. Can use frequently
Technical parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| | Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| | Heigth(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
Application
The 100 ton Molten Iron Casting Rail Ladle Transfer Car with High Temperature Resistant is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
