Bay to Bay Painting Room Transporter 50 Ton Rail Transfer Cart in Workshop

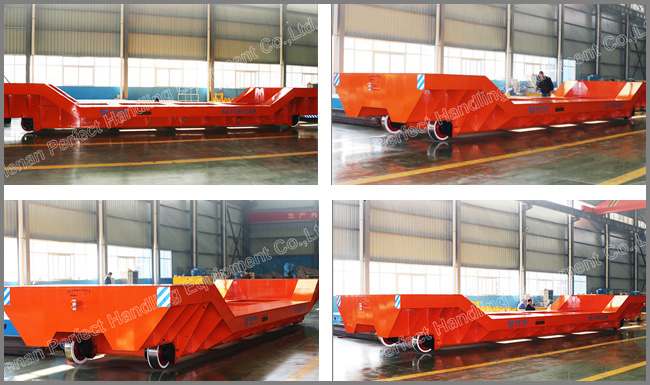

Multi-angle of 50 Ton Rail Transfer Cart
The 50 Ton rail transfer cart is made of wheels and frame and it has no driven system. It is pulled or towed by another powered transfer cart, winch or a fork lift of adequate capacity. The 50 rail transfer cart is connected by tow bar, and it can be connected together with many no power carts. The cart is also to satisfy factory's demand. Our company researches and develops it for industry transportation. This kind of rail transfer cart is convenient flexible and cost effective.

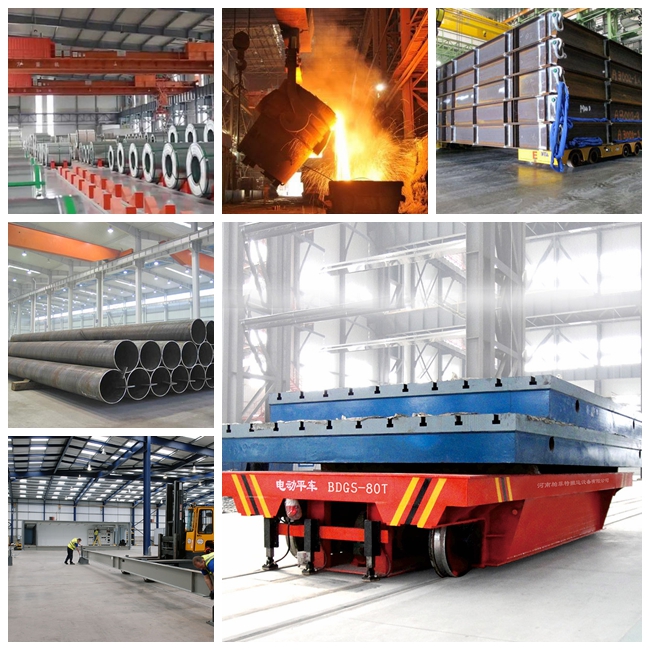

Application of 50 Ton Rail Transfer Cart
The 50 Ton rail transfer cart can be used in many occasions:
Industry field: Copper industry; pipe industry; cement plant; mold factory etc.
Bay to bay transport: For the large capacity transport, it is suitable for .all of parts you can customized according to your requirement
Airport: The 50 ton rail transfer cart as a kind of transportation it can be used to transfer the luggage to the assigned place.
Warehouse & Logistics: It can be used for material transfer and store with the advantage of heavy load capacity from 1-200 tons.
Advantages of 50 Ton Rail Transfer Cart
Greatly improve the production efficiency and safety
Long work life, durable and effective cost
Easy installation and maintenance
Designed according to your request
Technical Parameters
| Model | BP-5T | BP-10T | BP-15T | BP20T | BP-30T | BP-45T | BP-60T |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height (mm) | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| On cement floor | Tire Specification | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire |
| On rail | Rail Inner Gauge(mm) | 1435mm |
| Wheel material | LD steel wheel, Angel box wheel |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Other Products
Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-300 tons, our main products including BDG conductor rail equipment, BJT cable drum type, BHX safety sliding line type, BXC battery type, BTL towed cable type, BP non-power type, BQY train towed type, BWP trackless type and special type, such as turning cart, trackless cart, ladle car, hydraulic lifting car, ferry car, painting room car, blasting booth car, etc.
After Service
| After Service |
| Bearing Force | The load bearing safety factor of the trolley is no less than 120%. |
| Custom-Made | Freely design the auxiliary device or foundation drawing |
| Service Center | 16 hours engineering service and 24 hours internet service for our customers |
| Warranty | During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours. |
| Always at Your Service | Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company. |
