Heavy Duty Motorized Transfer Trolley Heat - Resistant For Chemical Industry

Name: Heavy Duty Motorized Transfer Trolley Heat Resistant For Chemical Industry
Brand: PERFECT
Price: 1 USD

Buy cheap Heavy Duty Motorized Transfer Trolley Heat - Resistant For Chemical Industry product

Brand Name : PERFECT

Model Number : BXC

Certification : CE, SGS, ISO

Place of Origin : Xinxiang, China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 75 Sets per month

Delivery Time : 45 Days

Packaging Details : The whole cart is package with tarp, and parts will be packed by wood case

Power Feeding : Storage Battery

Operation Mode : Pandent and Remote Controller

Cart Frame : Q235B

Rail Gauge : 1435mm (Customized)

Color : Yellow/Customized

Working Time : 6-8 Hours

Wheel Type : Cast steel wheel

Safrty Device : Buffer, Alarm light, Emergency Stop Buttons

Special Function : Anti-Explosion, Heat-Resistant, Lifting, Dumpling

Dimension : Customized

Contact Now

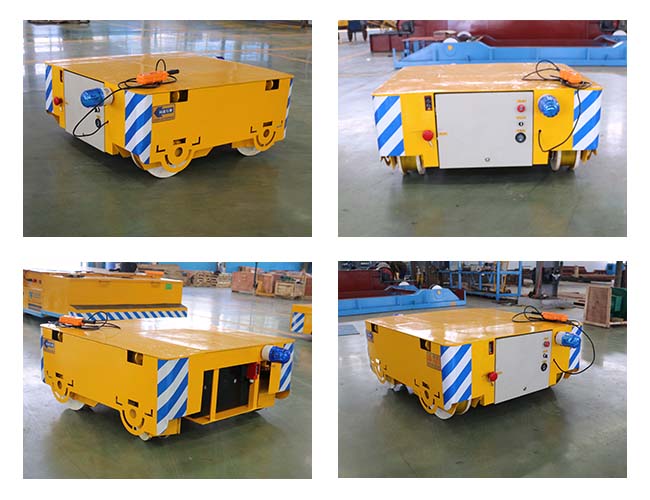

Rail Guided Vehicle Cast Steel Wheel Heavy Duty Motorized Transfer Trolley

Product Introduction---Heavy Duty Motorized Transfer Trolley

The battery powered series heavy duty motorized transfer trolley is a kind of material handling vehicle. The battery is installed inside the trolley. It is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. It is much safe and convenient due to it use the maintenance as its main power feeding.

Related Products

MORE PERFECT PRODUCTS INFORMATION
Product Name	Model	Power	Load Capacity	Customized	Application
Electric Rail Transfer Cart	BDG	Conductor Rail	1-300 (t)	Yes	The transfer cart is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).
Battery Powered Transfer Car	BXC	Storage Battery	1-300 (t)	Yes
No Rail Transfer Trolley	BWP	Storage Battery	1-300 (t)	Yes
Rail Guided Vehicle	BP	Towing or Pushing	1-100 (t)	Yes
Industrial Flat Trailer	BWT	Towing or Pushing	1-100 (t)	Yes
Railway Turntable (Turnplate)	BZP	Cable	1-150 (t)	Yes
Cable Drum Driven Transfer Wagon	BJT	Cable	1-300 (t)	Yes
Trailing Cable Automated Bogie	BTL	Cable	1-300 (t)	Yes
Rail Flaw Detection Car	BGJ	Lithium Battery	500KG	Yes
Busbar Powered Track Carriage	BHX	Safety Sliding Line	1-300 (t)	Yes
Heavy Duty Truck Tractor	BQY	Battery, Cable, Diesel	1-300 (t)	Yes

Application Sites---Heavy Duty Motorized Transfer Trolley

Our heavy duty motorized transfer trolley has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. It is available in inflammable and explosive environment or used as ferry car. This kind of motorized transfer trolley is suitable for long distance transportation and low frequency, since its travel distance is unlimited and low requirement to the track.

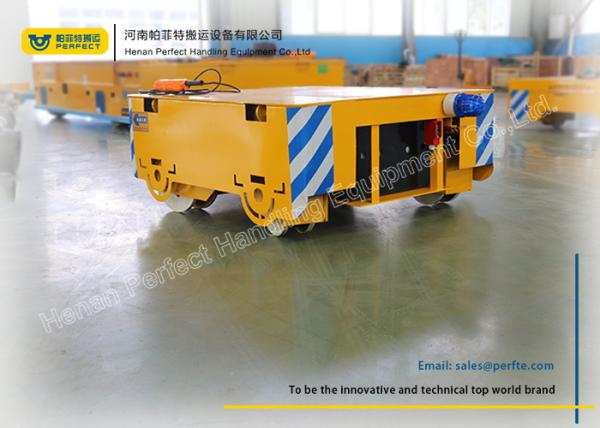

Heavy Duty Motorized Transfer Trolley Heat - Resistant For Chemical Industry

Working Principle---Heavy Duty Motorized Transfer Trolley

This series transfer trolley is battery powered. The battery is installed in the trolley. The battery supply electricity to the DC motor through the electrical control system to make the transfer trolley start, stop, go forward and backward, and the speed can be adjusted at the same time, besides that, many other functions can also be conducted by the aid of this kind of principle.

Heavy Duty Motorized Transfer Trolley Heat - Resistant For Chemical Industry

FAQ

1. Q: What term of payment do you accept?

A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.

2. Q: What is you delivery time?

A: We will delivery the transfer car you ordered 45 days after we accept the prepayment.

3. Q: How do transfer car been shipped?

A: We export the transfer car by sea or train with full container, LCL or in Bulk.

4. Q: Do you have quality assurance for the transfer car ?

A: Yes, we have one year of assurance.
