20 Ton Heavy Cargo Transportation China Rail Flat Cart Work with Crane
Introduction of Heavy Cargo Transportation Rail Flat Cart
This cart is powered by storage battery. It's cost-saving and long-distance running and doesn't need special rail requests. When the cart is working, it will be steadily travel, steadily start and slowly stop. The service time of the storage battery is over 3 years. You need to charge it for 8 hours and then it will work for over 4 hours. It has no limitation of running distance. We can also fit some other devices as per your requests.

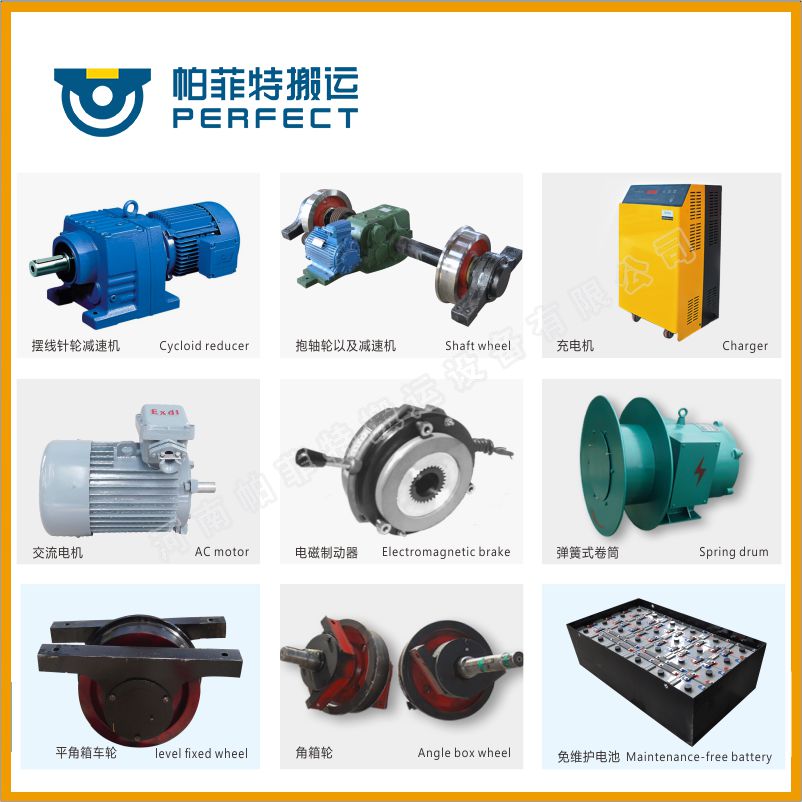

Details of Heavy Cargo Transportation Rail Flat Cart
Application Fields of Heavy Cargo Transportation Rail Flat Cart
Our Heavy Cargo Transportation Rail Flat Carts are used in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant aerospace, power generation, and so on. We are always ready to provide the product you want!
Paremeters of Heavy Cargo Transportation Rail Flat Cart
| Model | BXC-20t |
| Rated Load(t) | 20 |
| Table Size (mm) | Length(L) | 4000 |
| Width(W) | 2200 |
| Height(H) | 550 |
| Wheel Base(mm) | 2800 |
| Rail Inner Gauge(mm) | 1435 |
| Wheel Diameter(mm) | 350 |
| Wheel Quantity | 4 |
| Ground Clearance(mm) | 50 |
| Running Speed(min) | 0-20 |
| Motor Power(kw) | 2.2 |
| Battery Capacity | 180 |
| Battery Voltage | 48 |
| Running Time When Full Load | 4 |
| Running Distance for One Charge(Km) | 4.8 |
| Max Wheel Load(KN) | 77.7 |
| Reference Weight(t) | 5.9 |
| Recommended Rail Model | P24 |
Sales Service
1. We make sure that the load bearing safety factor of the trolley is no less than 120%.
2. We also provide freely design of the auxiliary device or foundation drawing, and offer the technical service and drawing material.
3. We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you.
4. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
Contact Information
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
-
What material/cargo are you going to transfer?
-
What load capacity do you want?
-
What kind of ground does the transfer cart operate on? (rails or cement floor)
-
What’s the specification table size ? (length,width and height)
-
How many working hours do you have everyday?
