Brand Name : PERFECT
Model Number : BXC
Certification : CE, SGS, ISO
Place of Origin : Xinxiang, China
MOQ : 1
Payment Terms : L/C, T/T, Western Union
Supply Ability : 75 Sets per month
Delivery Time : 45 Days
Packaging Details : The whole cart is package with tarp, and parts will be packed by wood case
Powered Source : Storage Battery / Lead-acid Battery
Operation Mode : Pandent and Remote Controller and PLC
Cart Frame : Q235B
Rail Gauge : 1435mm (Customized)
Color : Yellow/Customized
Running Distance : No Limited
Wheel Type : Cast steel wheel
Safrty Device : Buffer, Alarm light, Emergency Stop Buttons
Special Function : Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Dimension : Customized
BXC SERIES TRANSFER CART TECHNICAL PARAMETER TABLE | ||||||
Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Height(H) | 450 | 550 | 650 | 900 | 1200 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
PERFECT design and manufacture virtually any type of material transfer car. Recent contracts have included bespoke ladle transfer car to cater for metallurgy use; high capacity rail cart for the transport of minerals and well wagons filled with remote controller for the safe movement of thermal product. And The material transfer cart has proven to be a huge time saver for manufacture.
![]() |

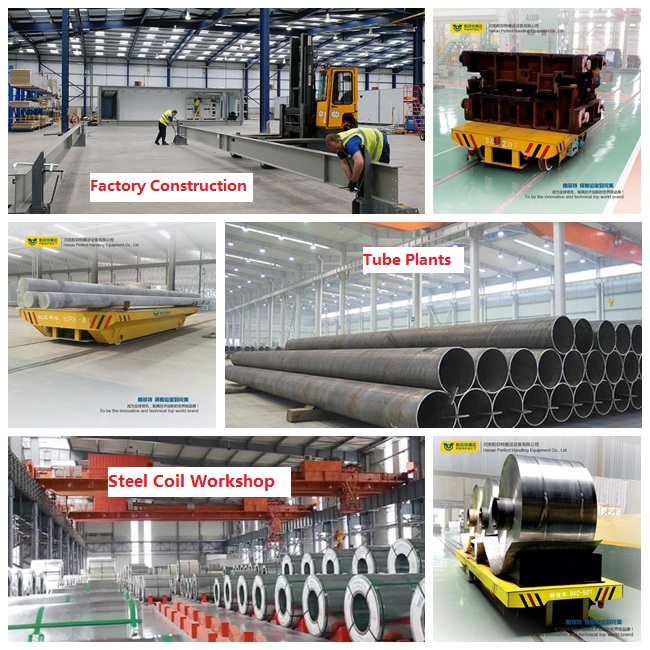

Custom Battery Transfer Cart Electric Railway Platform for Building Site Images |
