Customized 10t Dragged Industry Heavy Duty Die Carts

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

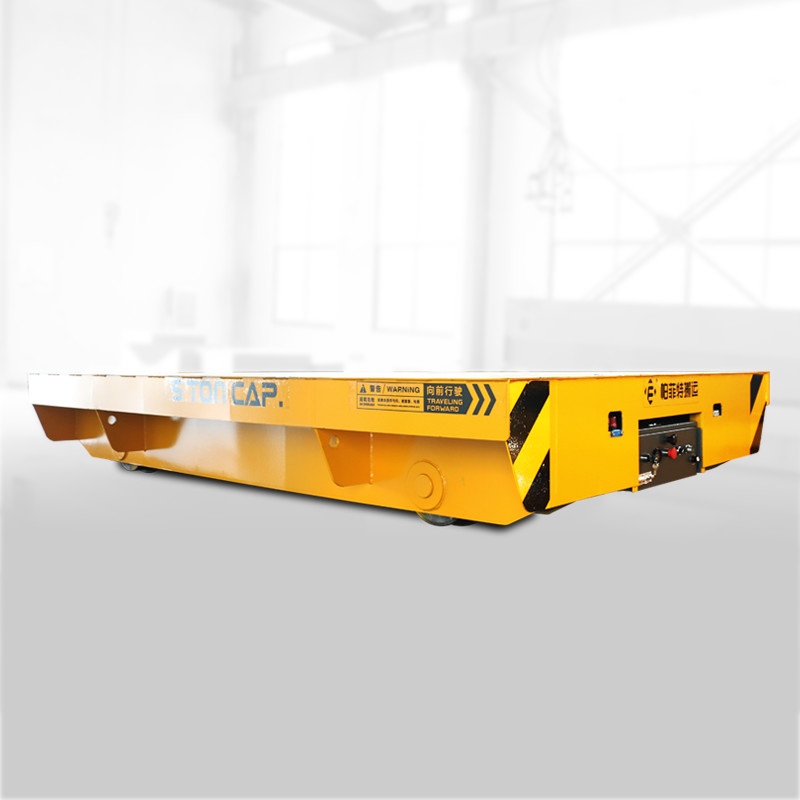

Customized 10t Dragged Industry Heavy Duty Die Carts

Brand Name : perfte

Model Number : dragged cable power flat bogie

Certification : ISO 9001,CE,CCPIT

Place of Origin : Xinxiang-Henan-China

MOQ : 1

Price : $4000-$5500

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 60 set per month

Delivery Time : 5-8 work days

Packaging Details : The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.

Rated load (T) : 1-150t

table size : customize

running speed : 0-20

ground requirement : cement floor

control mode : push button control, wireless remold

Motor Power (Kw) : 1.5

Battery Capacity(Ah) : 180-600

charger function : automatic charging

ground clearance : 50

power : dragged cable

Contact Now

Customized 10T Dragged Industry Transfer Equipment Heavy Duty Transport Vehicle



Description


The heavy duty transport vehicle is powered by 380V alternating current through busbar. Then the current pass through the slide knife installed in the bogie and was controlled by electric control system. The sale sliding contact line can be installed in the middle of the tracks, or by the outside of the tracks, or in the trench or under the roof of the plant. It has no limitation of running distance.



Customized 10t Dragged Industry Heavy Duty Die Carts



Advantages

  1. Maintenance-free, long service life, as long as it can be moved, steel can be used without rust.
  2. Suitable for short distance transportation
  3. High efficiency, large load capacity, can transport a lot of materials at a time
  4. One person is enough to save costs and save manpower
  5. Simple operation, with remote control button and joystick operation
  6. There are people stop and danger warning lights on the car, safe operation

Customized 10t Dragged Industry Heavy Duty Die Carts



Technical parameters:



Model BHX-2t BHX -20t BHX -50t BHX -100t BHX -150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
  Width(W) 1500 2200 2500 2800 3000
  Height(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Reference Weight(t) 2.3 5.5 7.6 13.9 26
Recommended Rail Model P15 P24 P43 QU100 QU100



Customized 10t Dragged Industry Heavy Duty Die Carts



After service


We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
