20Ton Flatbed Transfer Cart Small Car Trailer Battery Powered For Cargo Transport

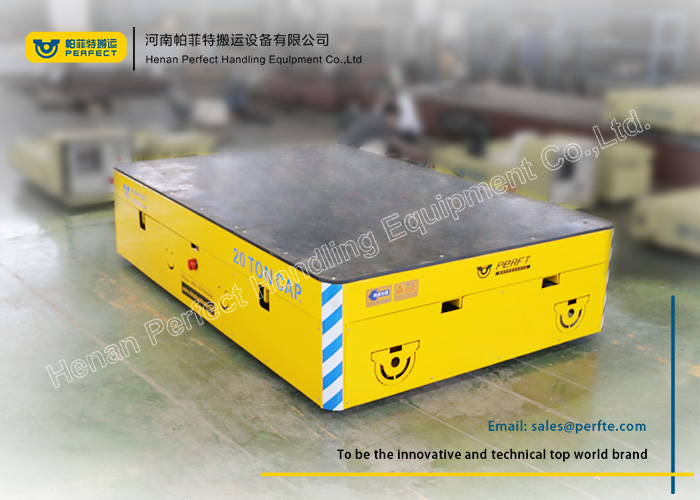

Introduction of 20Ton Flatbed Transfer Cart
This 20Ton flatbed transfer cart is designed with small size to accomodate client's requirement of running in the narrow working space. It could run in the narrow workshop flexibly. It is powered by battery which is installed inside the car. The pulling motor get current from electric control system that makes it start, stop, move forward, move backward. And this series of car could run on the S-type, L-type track or curved track, even in inflammable and explosion environment, the transfer car also can works well. In addition, the warehouse transport trolley is suitable to be used in the long running distance transportation and low using frequency.
Due to the battery powered warehouse transport trolley has no strict requirement for the construction of the railway, it has become a competitive handling tool which has been widely used in factory, manufacturing shop, assembly line, shipyard, warehouse etc.
Application Sites of 20Ton Flatbed Transfer Cart
We design and manufacture many different kinds of transfer cart according client's requirement. If our clients don't know how to choose the car, we will give our proposal. Our products are widely applied in metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coil industry, paper mills, metal working, warehouse and so on.
Parameters of 20Ton Flatbed Transfer Cart
| Model | BXC-2t | BXC -20t | BXC -50t | BXC -100t | BXC -150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Packing and Shipment
The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
Why Choose US
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
